E-L9935 Overview

Product belongs to the L9935 series. This product is categorized as Stepper Motor Controllers / Drivers Type: 2 Phase Stepper Motor Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-20 DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 8 V ~ 24 V Supplier device package: PowerSO-20 The Half Bridge (4). Voltage-Load range is 8 V ~ 24 V. - motor type is used for high-performance and efficient operation. This product operates at a 14.4 V supply voltage for reliable performance. 4.5 mA is 92 nA.

E-L9935 Image

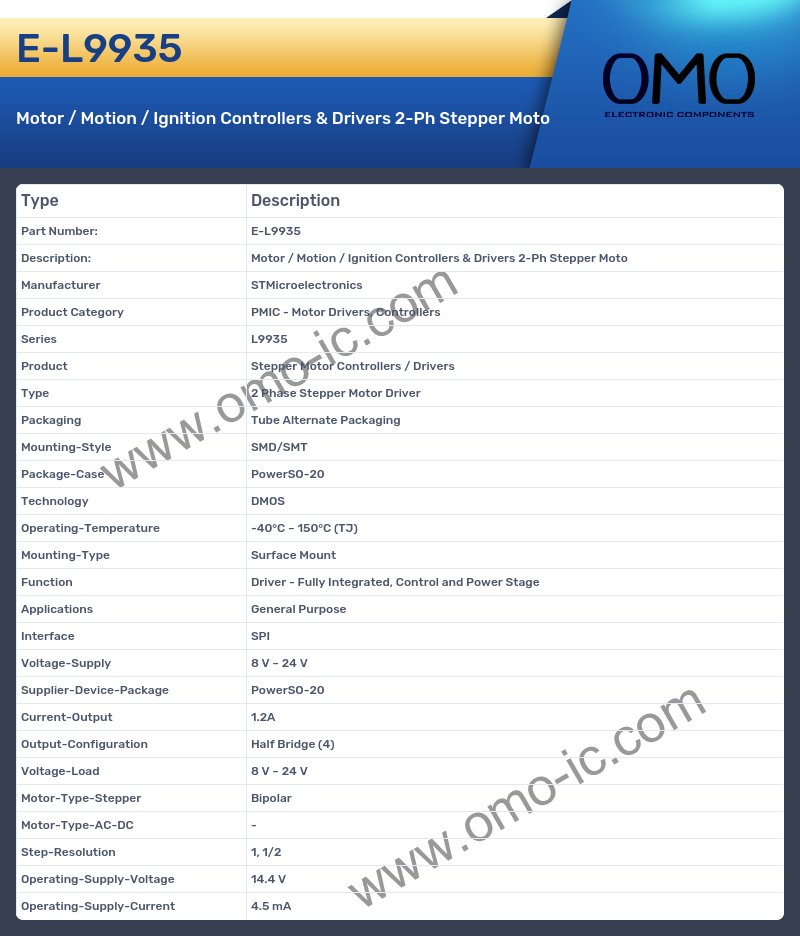

E-L9935 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L9935
• Product Stepper Motor Controllers / Drivers
• Type 2 Phase Stepper Motor Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-20
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 8 V ~ 24 V
• Supplier-Device-Package PowerSO-20
• Current-Output 1.2A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 24 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1, 1/2
• Operating-Supply-Voltage 14.4 V
• Operating-Supply-Current 4.5 mA
