E-L6258 Overview

Product belongs to the L6258 series. This product is categorized as Fan / Motor Controllers / Drivers Type: Dual DMOS Full Bridge PWM Motor Driver Tube is the packaging method for this product SMD/SMT Mounting-Style Wide - 55 C to + 150 C operating temperature range for diverse applications PowerSO-36 DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: PowerSO-36 The Half Bridge (4). Voltage-Load range is 12 V ~ 34 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 12 V to 34 V supply voltage for reliable performance. 15 mA is 92 nA.

E-L6258 Image

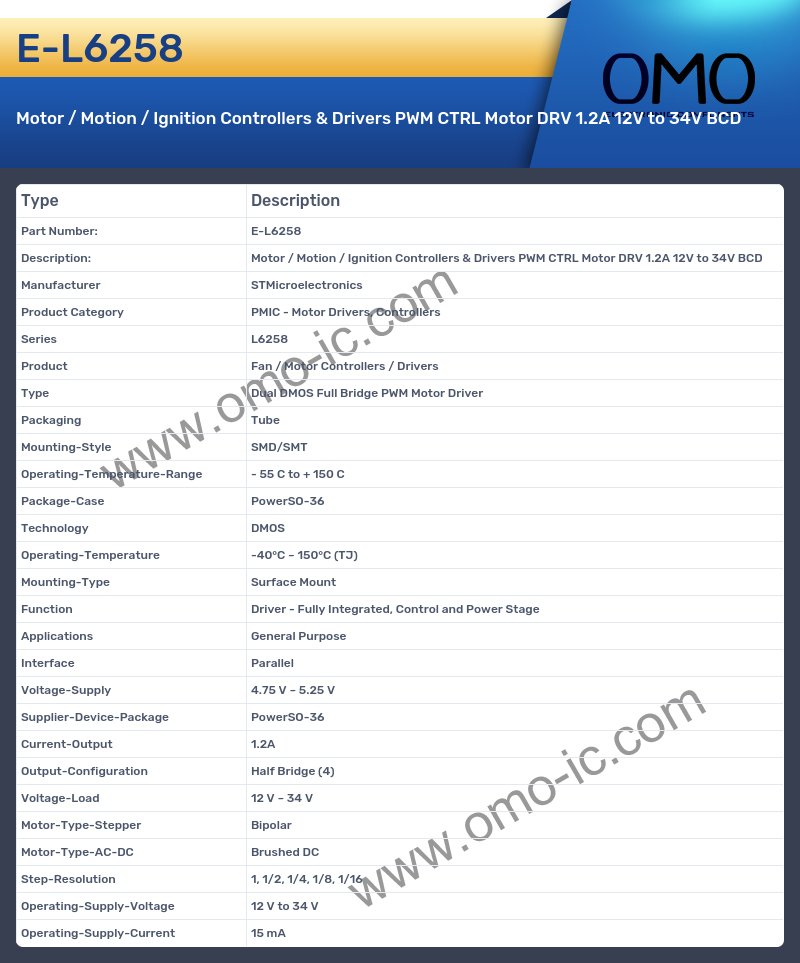

E-L6258 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6258
• Product Fan / Motor Controllers / Drivers
• Type Dual DMOS Full Bridge PWM Motor Driver
• Packaging Tube
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 150 C
• Package-Case PowerSO-36
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.2A
• Output-Configuration Half Bridge (4)
• Voltage-Load 12 V ~ 34 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution 1, 1/2, 1/4, 1/8, 1/16
• Operating-Supply-Voltage 12 V to 34 V
• Operating-Supply-Current 15 mA
