DRV8307RHAT

DRV8307RHAT Overview

Product belongs to the DRV8307 series. This product is categorized as Brushless DC Motor Controllers Type: 3 Phase Brushless DC Motor Controller Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications VQFN-40 NMOS is the technology used. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Product function is Controller - Commutation, Direction Management. Versatile General Purpose applications for maximum usability Interface: Parallel, PWM Voltage Supply Range: 8.5 V ~ 32 V Supplier device package: 40-VQFN (6x6) Number-of-Outputs: 1 Output The Pre-Driver - Half Bridge (3). Voltage-Load range is -. Brushless DC (BLDC) motor type is used for high-performance and efficient operation. This product operates at a 8.5 V to 32 V supply voltage for reliable performance. Output voltage: 5 V 12 mA is 92 nA. The operating frequency is 50 MHz. Output current: 300 mA The DRV8307EVM.

DRV8307RHAT Image

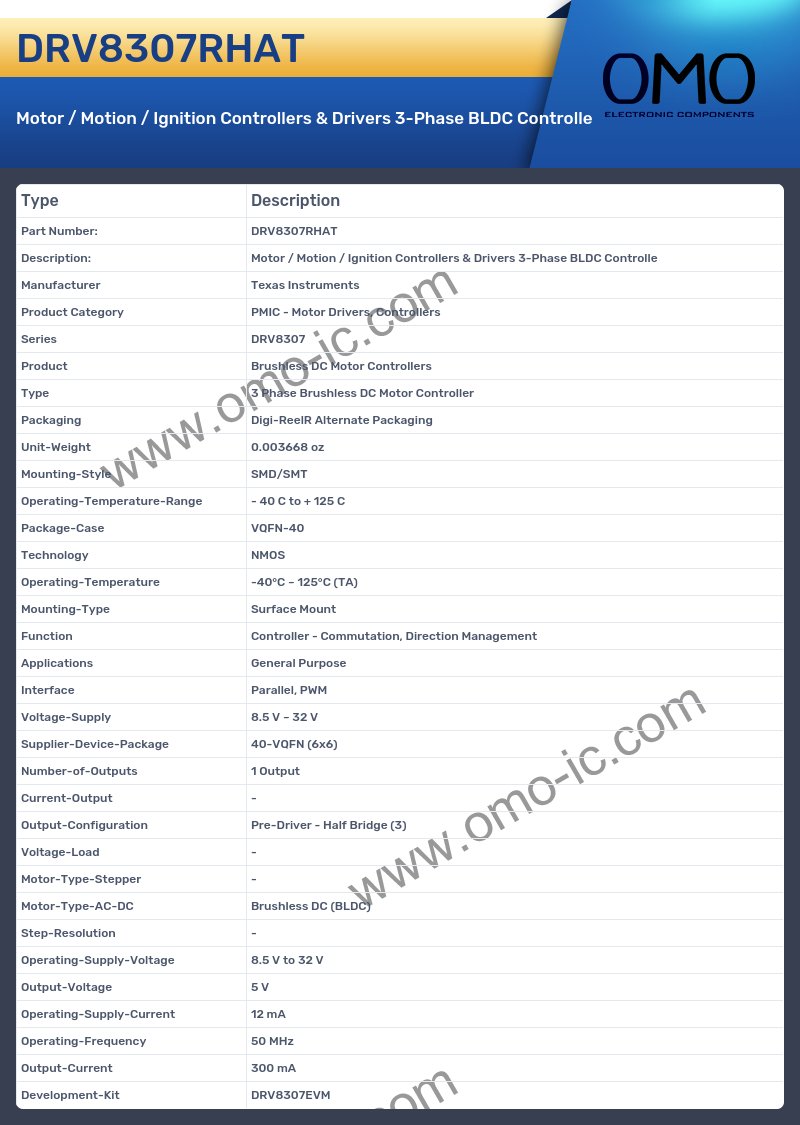

DRV8307RHAT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series DRV8307
• Product Brushless DC Motor Controllers
• Type 3 Phase Brushless DC Motor Controller
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case VQFN-40
• Technology NMOS
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Function Controller - Commutation, Direction Management
• Applications General Purpose
• Interface Parallel, PWM
• Voltage-Supply 8.5 V ~ 32 V
• Supplier-Device-Package 40-VQFN (6x6)
• Number-of-Outputs 1 Output
• Current-Output -
• Output-Configuration Pre-Driver - Half Bridge (3)
• Voltage-Load -
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC)
• Step-Resolution -
• Operating-Supply-Voltage 8.5 V to 32 V
• Output-Voltage 5 V
• Operating-Supply-Current 12 mA
• Operating-Frequency 50 MHz
• Output-Current 300 mA
• Development-Kit DRV8307EVM
