DP8570AVX

DP8570AVX Overview

Product belongs to the DP8570A series. This product is categorized as Real Time Clocks Type: Timer Clock Peripheral (TCP) Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Alarm Calendar Clock Interrupt. Interface: Parallel Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 28-PLCC (11.51x11.51) This product comes with a 44B memory size. This product uses a HH:MM:SS:hh (12/24 hr) time format. The product uses a YY-MM-DD-dd date format. Voltage supply range from 2.2 V ~ 5.1 V The Current-Timekeeping-Max for this product is 1μA @ 5V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product does not have Backup Switching capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V This product uses an Parallel interface for RTC bus communication. This product features an 32 B of 256 kB for reliable real-time clock functionality.

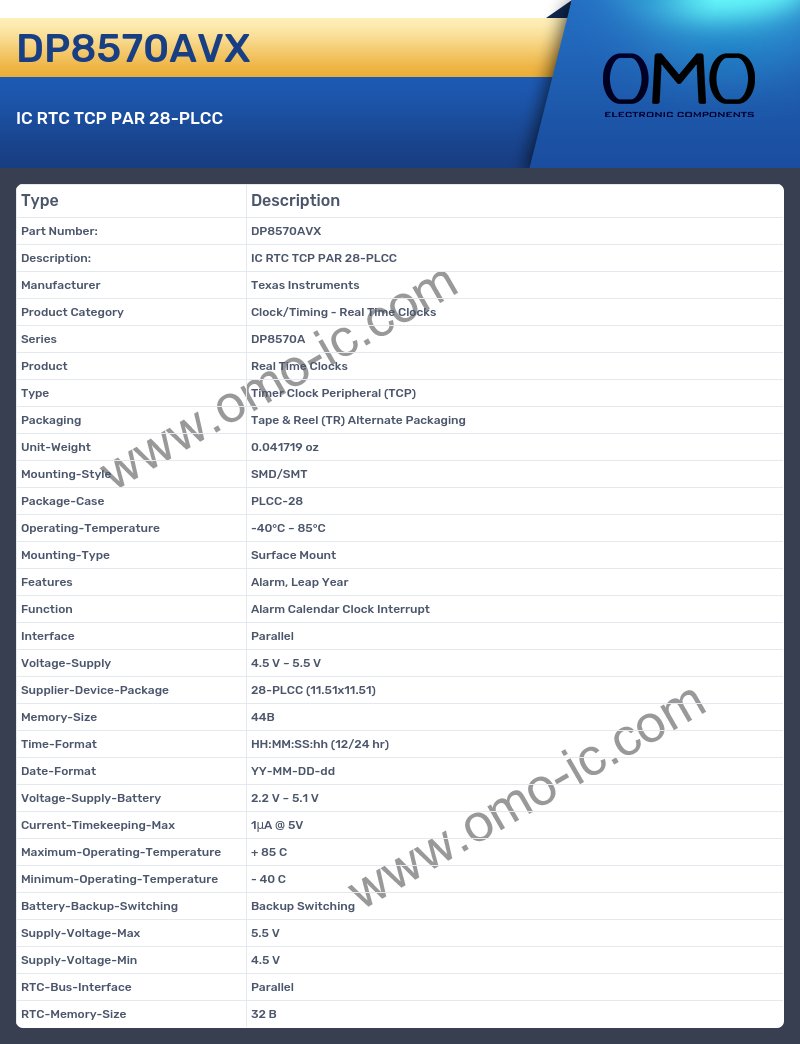

DP8570AVX Image

DP8570AVX Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Real Time Clocks
• Series DP8570A
• Product Real Time Clocks
• Type Timer Clock Peripheral (TCP)
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Alarm, Leap Year
• Function Alarm Calendar Clock Interrupt
• Interface Parallel
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Memory-Size 44B
• Time-Format HH:MM:SS:hh (12/24 hr)
• Date-Format YY-MM-DD-dd
• Voltage-Supply-Battery 2.2 V ~ 5.1 V
• Current-Timekeeping-Max 1μA @ 5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Battery-Backup-Switching Backup Switching
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• RTC-Bus-Interface Parallel
• RTC-Memory-Size 32 B
