DAC7654YT

DAC7654YT Overview

Product belongs to the DAC7654 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012088 oz SMD/SMT Mounting-Style LQFP-64 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 64-LQFP (10x10) Data-Interface: SPI 16 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 4 The 15μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type The DAC7654EVM. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Converters: 4 Converter 100 kS/s Sampling Rate

DAC7654YT Image

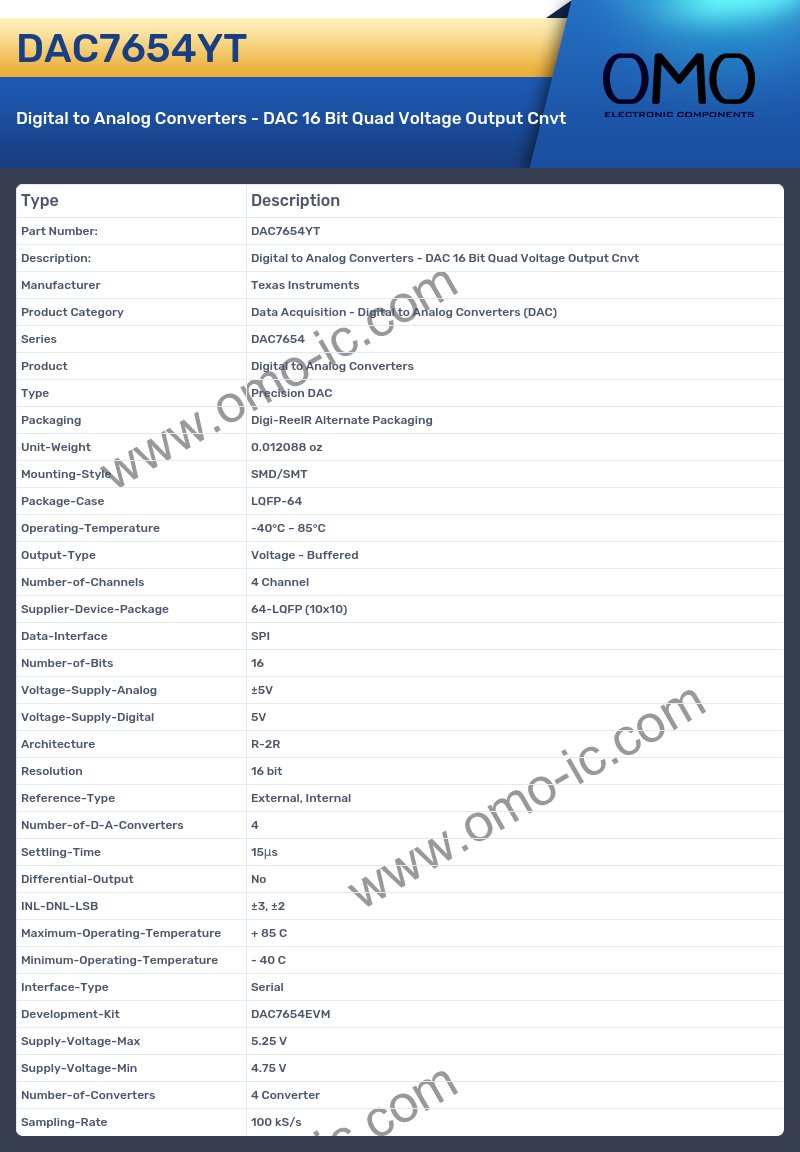

DAC7654YT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7654
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012088 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-64
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 64-LQFP (10x10)
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 4
• Settling-Time 15μs
• Differential-Output No
• INL-DNL-LSB ±3, ±2
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Development-Kit DAC7654EVM
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Converters 4 Converter
• Sampling-Rate 100 kS/s
