DAC7621EB Overview

Product belongs to the DAC7621 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.006162 oz SMD/SMT Mounting-Style SSOP-20 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 20-SSOP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 7μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Converters: 1 Converter 143 kS/s Sampling Rate

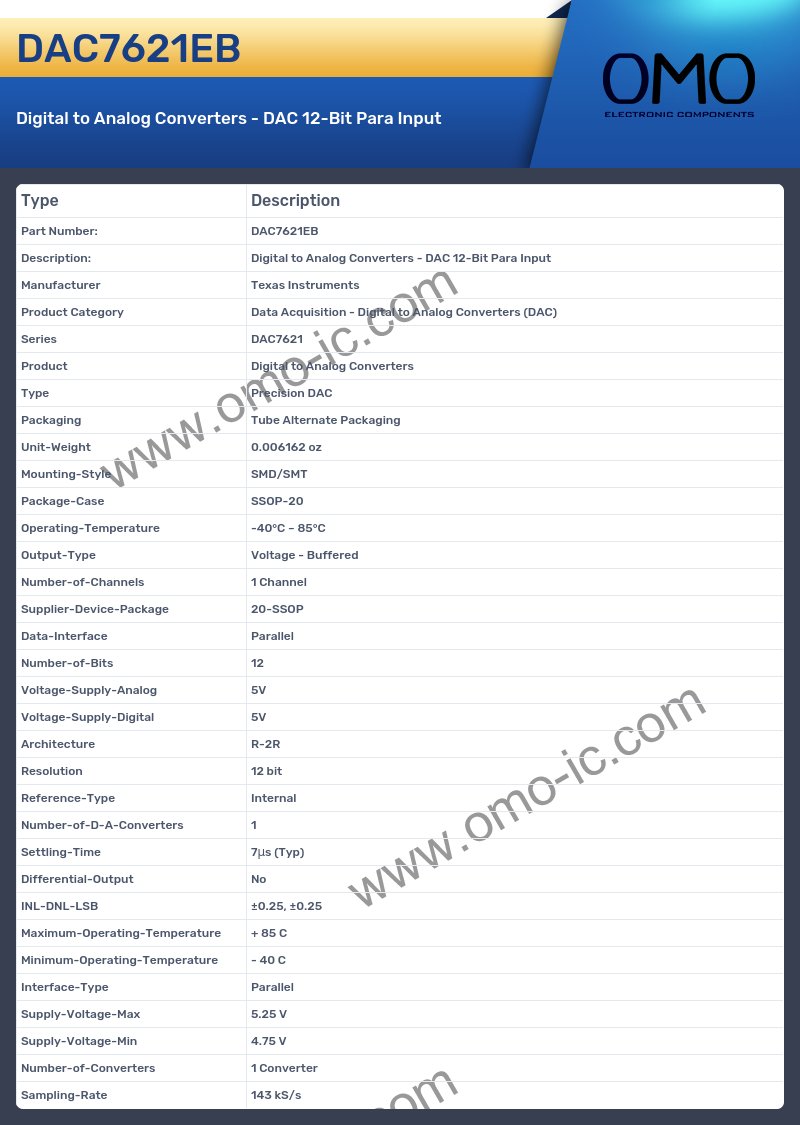

DAC7621EB Image

DAC7621EB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7621
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006162 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-SSOP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 7μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.25, ±0.25
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Converters 1 Converter
• Sampling-Rate 143 kS/s
