DAC715UL

DAC715UL Overview

Product belongs to the DAC715 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-SOIC Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs is an impressive 15 us. No Differential-Output Power-off control: 600 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Maximum supply voltage of +/- 16.5 V Minimum supply voltage is +/- 11.4 V Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Integral Nonlinearity: 2 LSB Differential nonlinearity: 1 LSB

DAC715UL Image

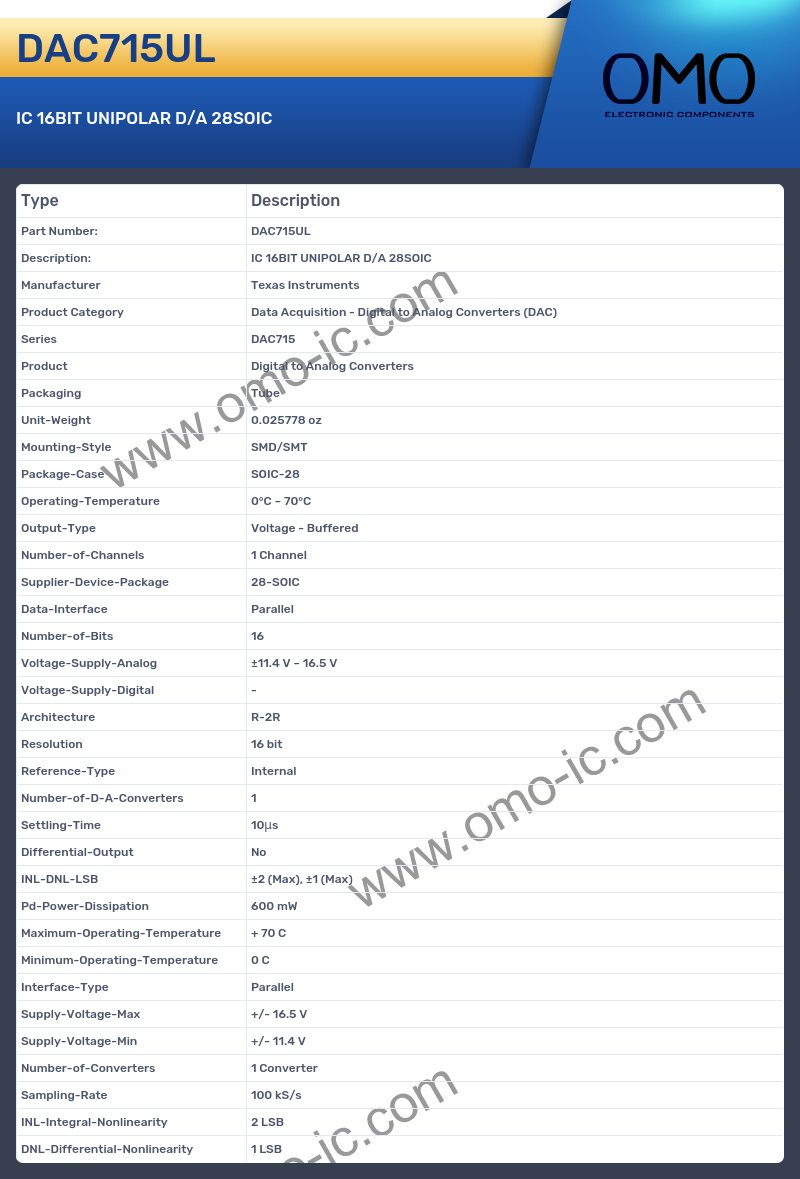

DAC715UL Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC715
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 16 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±1 (Max)
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Supply-Voltage-Max +/- 16.5 V
• Supply-Voltage-Min +/- 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity 2 LSB
• DNL-Differential-Nonlinearity 1 LSB
