DAC5674IPHPG4

DAC5674IPHPG4 Overview

Product belongs to the CommsDAC series. Tray Alternate Packaging is the packaging method for this product 48-TQFP Exposed Pad Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 48-HTQFP (7x7) Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 1.65 V ~ 1.95 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 20μs (Typ) is an impressive 15 us. Yes Differential-Output

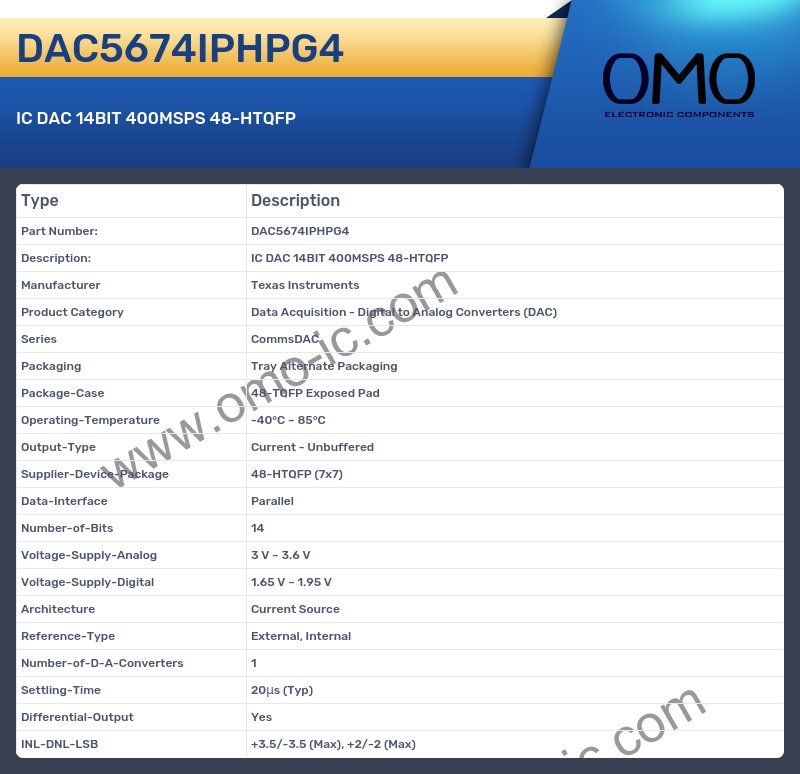

DAC5674IPHPG4 Image

DAC5674IPHPG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series CommsDAC
• Packaging Tray Alternate Packaging
• Package-Case 48-TQFP Exposed Pad
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 48-HTQFP (7x7)
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 1.65 V ~ 1.95 V
• Architecture Current Source
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 20μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB +3.5/-3.5 (Max), +2/-2 (Max)
