DAC5672AIPFB

DAC5672AIPFB Overview

Product belongs to the DAC5672A series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 48-TQFP (7x7) Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 20μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 77 dB Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Converters: 2 Converter 275 MS/s Sampling Rate

DAC5672AIPFB Image

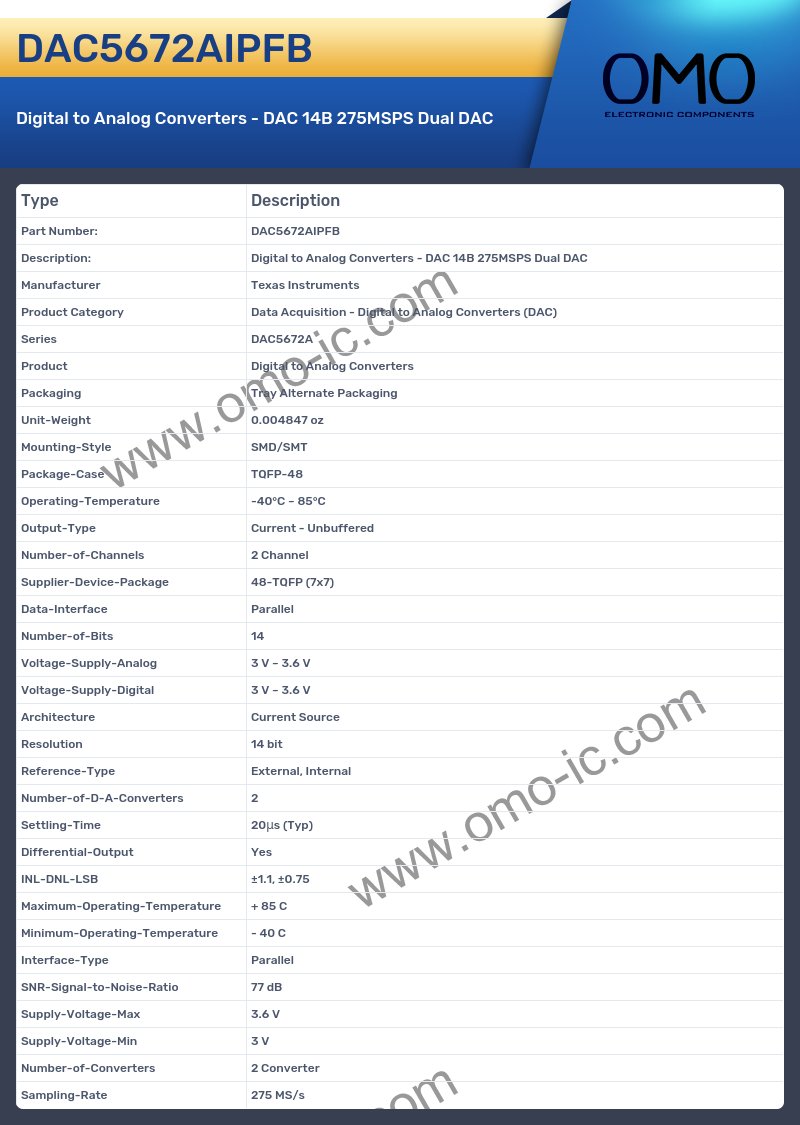

DAC5672AIPFB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC5672A
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Architecture Current Source
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 20μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±1.1, ±0.75
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 77 dB
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 2 Converter
• Sampling-Rate 275 MS/s
