CSD87501L

CSD87501L Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 10-XFBGA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 10-Picostar (3.37x1.47) This product uses an 2 N-Channel (Dual) Common Drain FET-Type transistor. Transistor type: 2 N-Channel - This product has an - value of 300pF @ 25V. This product's Logic Level Gate. - continuous drain-ID current at 25°C; This product has an - of 12 Ohm @ 150mA, 0V. The transistor polarity is N-Channel.

CSD87501L Image

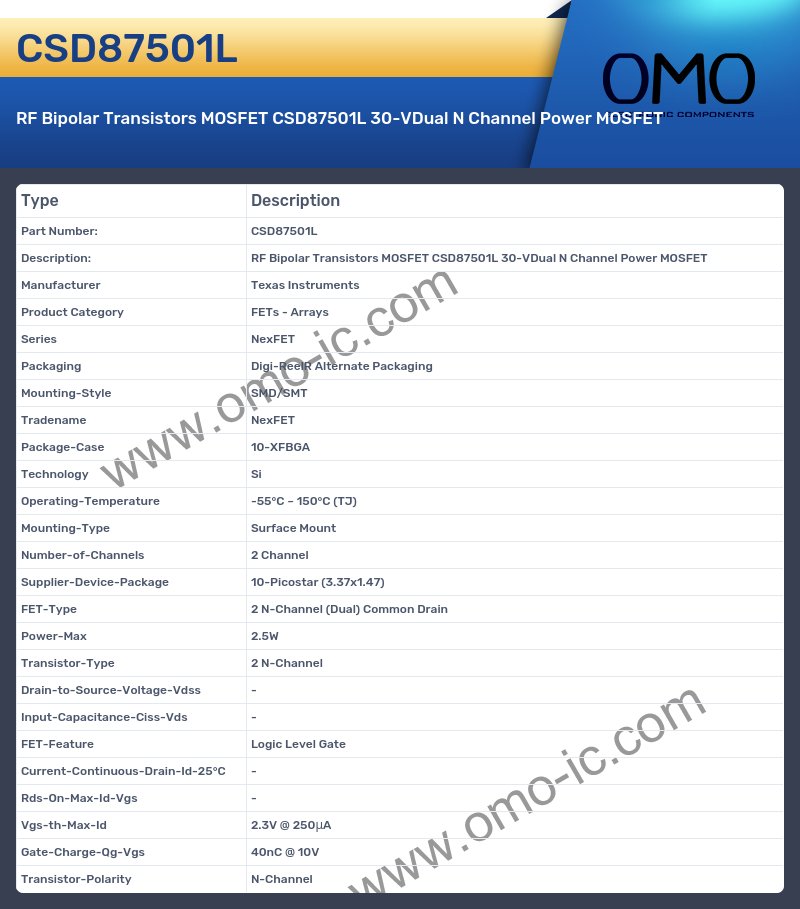

CSD87501L Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 10-XFBGA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 10-Picostar (3.37x1.47)
• FET-Type 2 N-Channel (Dual) Common Drain
• Power-Max 2.5W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss -
• Input-Capacitance-Ciss-Vds -
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C -
• Rds-On-Max-Id-Vgs -
• Vgs-th-Max-Id 2.3V @ 250μA
• Gate-Charge-Qg-Vgs 40nC @ 10V
• Transistor-Polarity N-Channel
