| Mfr. #: | CSD85301Q2T |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | IGBT Transistors MOSFET Dual N-Channel NexFET Pwr MOSFET |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | CSD85301Q2T Деректер тізімі |
Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style Trade name: NexFET. 6-WDFN Exposed Pad Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 6-WSON (2x2) Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 20V This product has an 469pF @ 10V value of 300pF @ 25V. This product's Logic Level Gate, 5V Drive. 5A continuous drain-ID current at 25°C; This product has an 27 mOhm @ 5A, 4.5V of 12 Ohm @ 150mA, 0V. Power-off control: 2.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 26 ns of 16 ns. This product's 10 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 20 V. This product has a 600 mV Vgs-th gate-source threshold voltage for efficient power management. The 99 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 14 ns This product has a 6 ns. Qg-Gate-Charge is 5.4 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

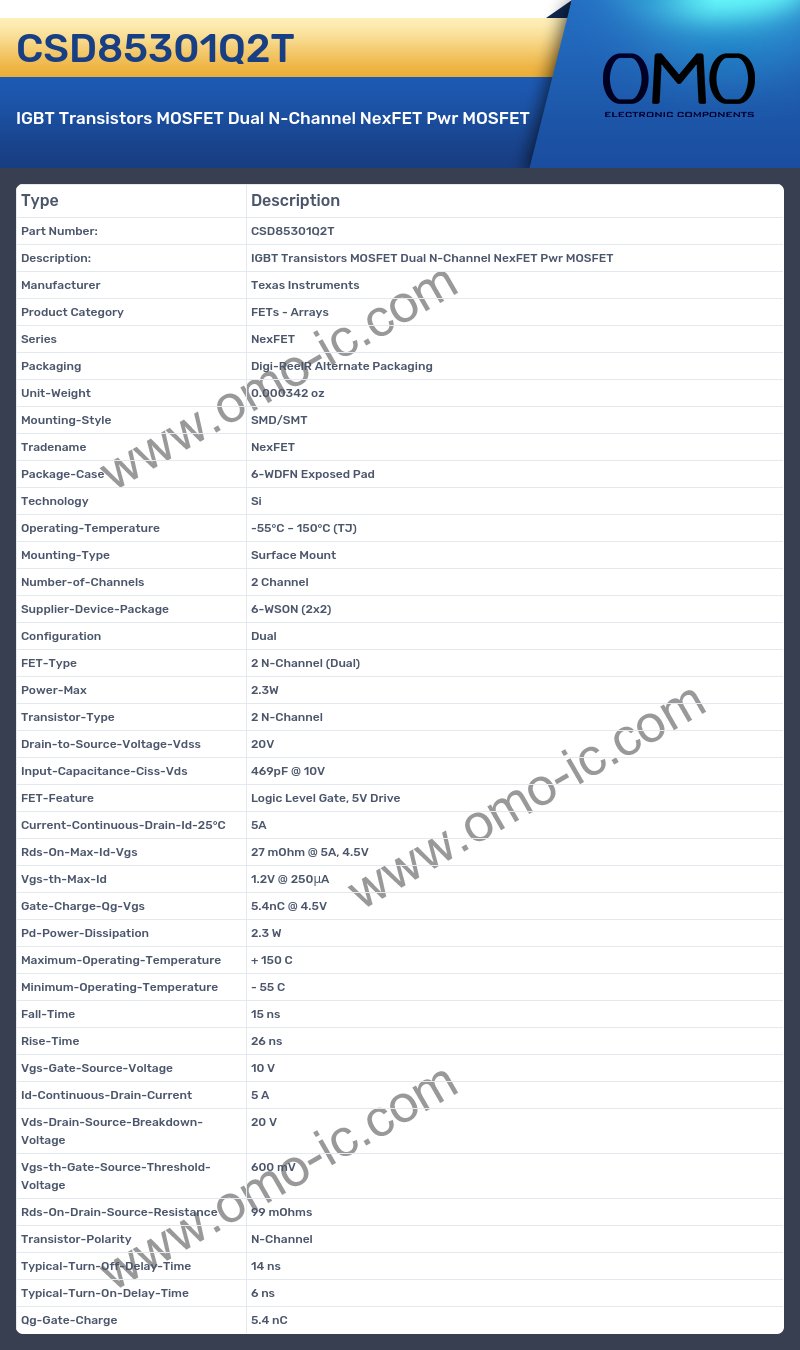

CSD85301Q2T Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed NexFET
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.000342 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed NexFET
A: What is the Package-Case of the product?
Q: The Package-Case of the product is 6-WDFN Exposed Pad.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -55°C ~ 150°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 2 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 6-WSON (2x2)
A: What is the Configuration of the product?
Q: The Configuration of the product is Dual.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is 2 N-Channel (Dual).
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 2 N-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 20V
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 469pF @ 10V.
A: At what frequency does the FET-Feature?
Q: The product FET-Feature is Logic Level Gate, 5V Drive.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 5A
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 27 mOhm @ 5A, 4.5V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 2.3 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 15 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 26 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 10 V
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 5 A
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 20 V
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 600 mV.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 99 mOhms
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 14 ns.
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 6 ns.
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 5.4 nC.
