CSD17527Q5A

CSD17527Q5A Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product 8-PowerTDFN Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-VSON (5x6) This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. 30V This product has an 506pF @ 15V value of 300pF @ 25V. This product's Standard. 65A (Tc) continuous drain-ID current at 25°C; This product has an 10.8 mOhm @ 11A, 10V of 12 Ohm @ 150mA, 0V.

CSD17527Q5A Image

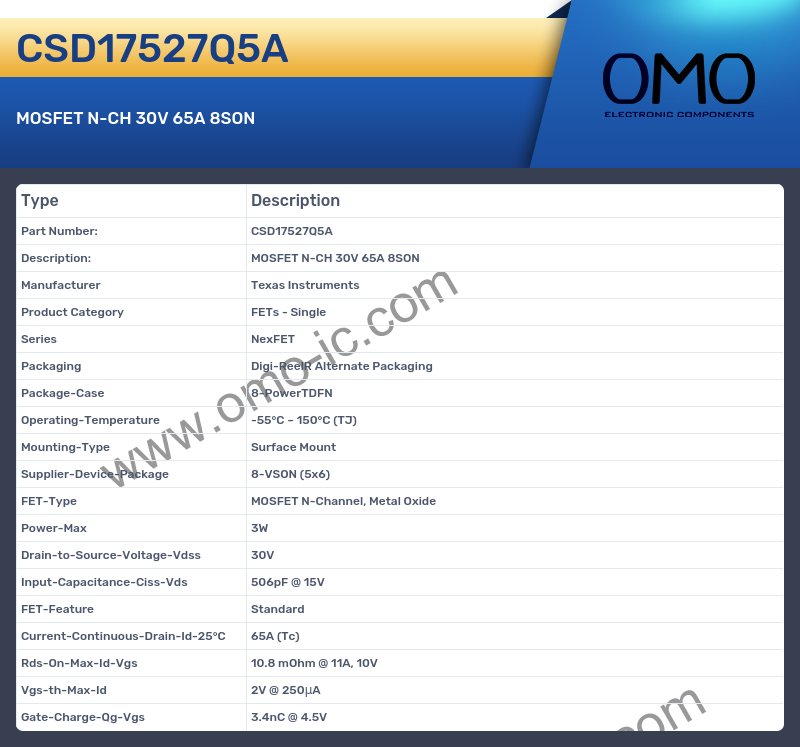

CSD17527Q5A Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Single
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 8-PowerTDFN
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-VSON (5x6)
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 3W
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 506pF @ 15V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 65A (Tc)
• Rds-On-Max-Id-Vgs 10.8 mOhm @ 11A, 10V
• Vgs-th-Max-Id 2V @ 250μA
• Gate-Charge-Qg-Vgs 3.4nC @ 4.5V
