CDCE949PWR

CDCE949PWR Overview

Product belongs to the CDCE949 series. Type: PLL Clock Generator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003157 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 1.7 V ~ 1.9 V Supplier device package: 24-TSSOP Input type: LVCMOS, Crystal The LVCMOS. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:09:00. Differential input and output are both available: No/No Maximum frequency of 230MHz Yes/No Divider-Multiplier Number-of-Outputs: 9 Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The CDCE949PERF-EVM. Maximum supply voltage of 1.9 V Minimum supply voltage is 1.7 V Maximum-Input-Frequency: 160 MHz Maximum output frequency is 230 MHz. LVCMOS is the output level. This product has an Crystal LVCMOS for easy integration with other devices.

CDCE949PWR Image

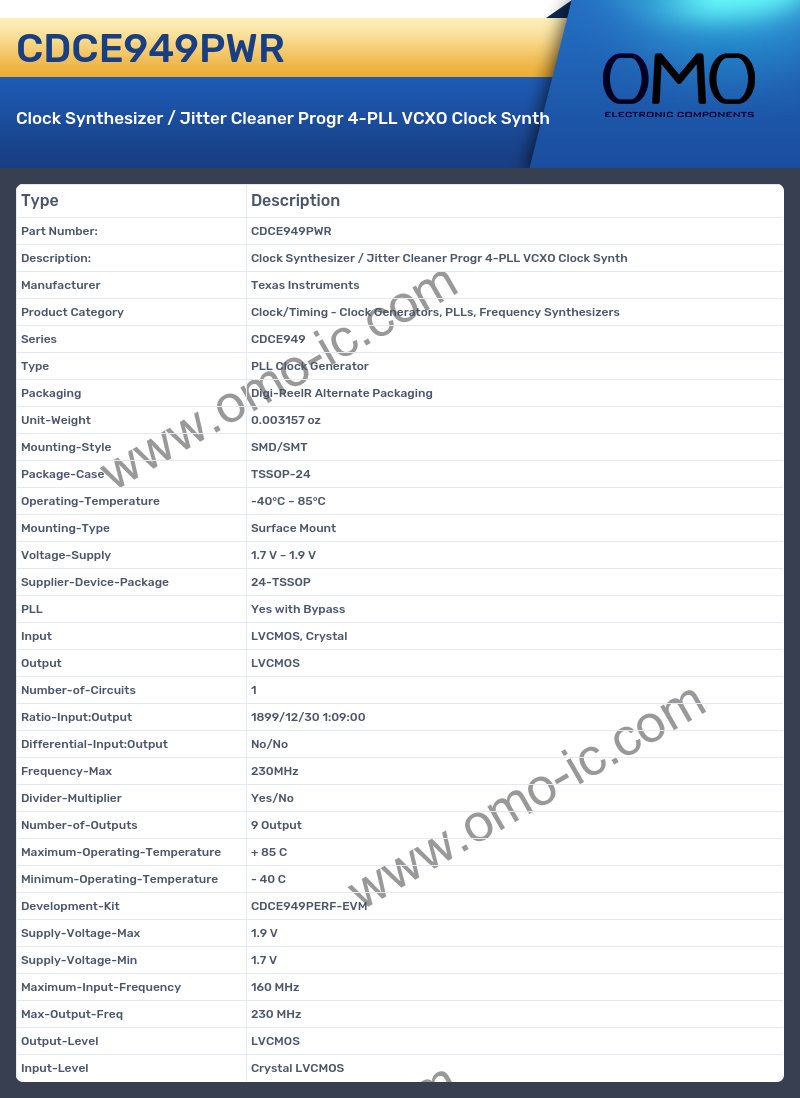

CDCE949PWR Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDCE949
• Type PLL Clock Generator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003157 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 1.7 V ~ 1.9 V
• Supplier-Device-Package 24-TSSOP
• PLL Yes with Bypass
• Input LVCMOS, Crystal
• Output LVCMOS
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:09:00
• Differential-Input:Output No/No
• Frequency-Max 230MHz
• Divider-Multiplier Yes/No
• Number-of-Outputs 9 Output
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Development-Kit CDCE949PERF-EVM
• Supply-Voltage-Max 1.9 V
• Supply-Voltage-Min 1.7 V
• Maximum-Input-Frequency 160 MHz
• Max-Output-Freq 230 MHz
• Output-Level LVCMOS
• Input-Level Crystal LVCMOS
