CDCE706PWR

CDCE706PWR Overview

Product belongs to the CDCE706 series. Type: PLL Frequency Synthesizer Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 20-TSSOP Input type: LVCMOS, Crystal The LVCMOS. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:06:00. Differential input and output are both available: Yes/No Maximum frequency of 300MHz Yes/Yes Divider-Multiplier Number-of-Outputs: 6 Output Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 90 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Maximum-Input-Frequency: 200 MHz Maximum output frequency is 300 MHz. LVCMOS is the output level. This product has an Crystal LVCMOS Differential for easy integration with other devices.

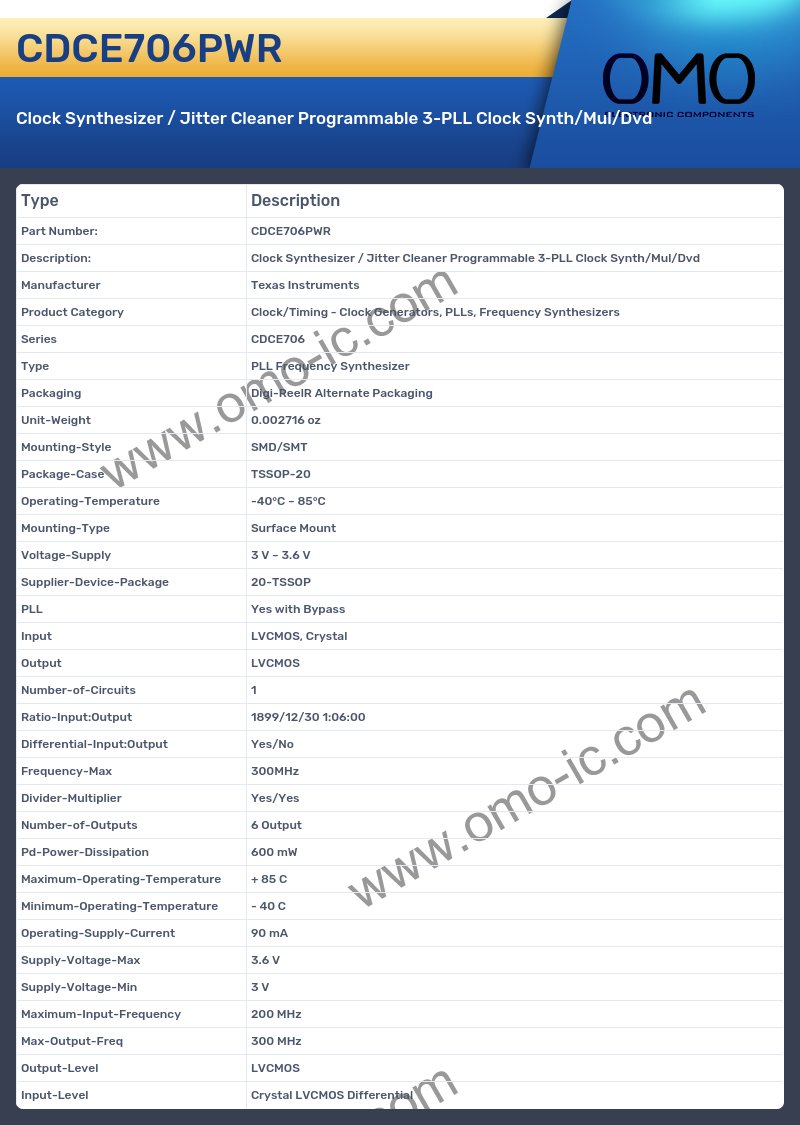

CDCE706PWR Image

CDCE706PWR Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDCE706
• Type PLL Frequency Synthesizer
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002716 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 20-TSSOP
• PLL Yes with Bypass
• Input LVCMOS, Crystal
• Output LVCMOS
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:06:00
• Differential-Input:Output Yes/No
• Frequency-Max 300MHz
• Divider-Multiplier Yes/Yes
• Number-of-Outputs 6 Output
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 90 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Maximum-Input-Frequency 200 MHz
• Max-Output-Freq 300 MHz
• Output-Level LVCMOS
• Input-Level Crystal LVCMOS Differential
