CD74HC86MG4

CD74HC86MG4 Overview

Product belongs to the 74HC series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 4 is 8. 2μA maximum quiescent current. XOR (Exclusive OR) logic type 0.5 V ~ 1.8 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High

CD74HC86MG4 Image

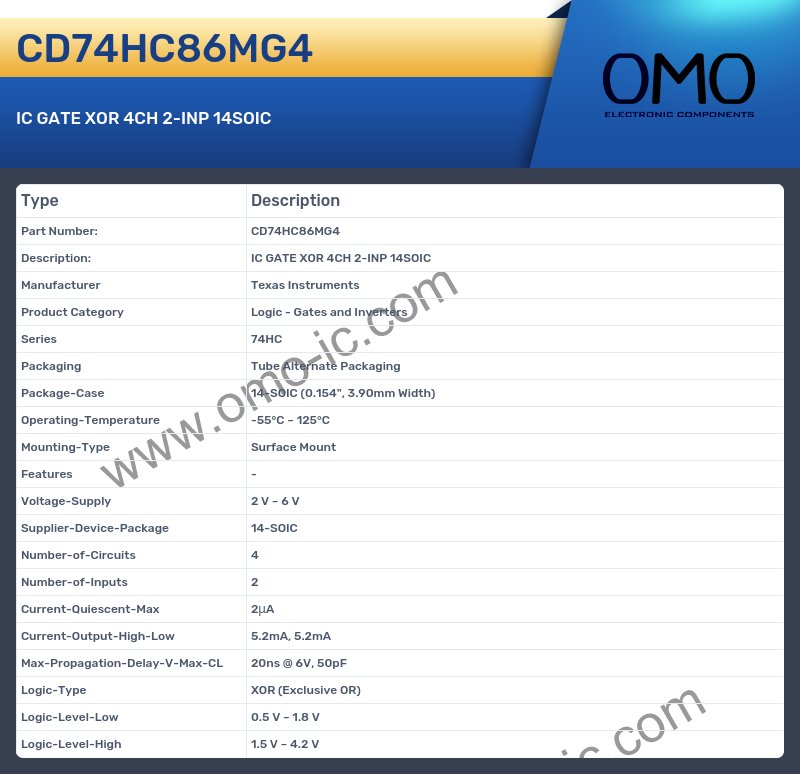

CD74HC86MG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74HC
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 20ns @ 6V, 50pF
• Logic-Type XOR (Exclusive OR)
• Logic-Level-Low 0.5 V ~ 1.8 V
• Logic-Level-High 1.5 V ~ 4.2 V
