CD4541BM

CD4541BM Overview

Product belongs to the CD4541B series. Type: Programmable Timer Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 This product's 100kHz range is 0Hz to 2.2GHz. Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SOIC This product has a - of 200μA. Power-off control: 100 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 300 uA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 3 V Maximum propagation delay: 10000 ns High-Level-Output-Current of 4 mA 4 mA low-level output current 1 Timer Internal Timers

CD4541BM Image

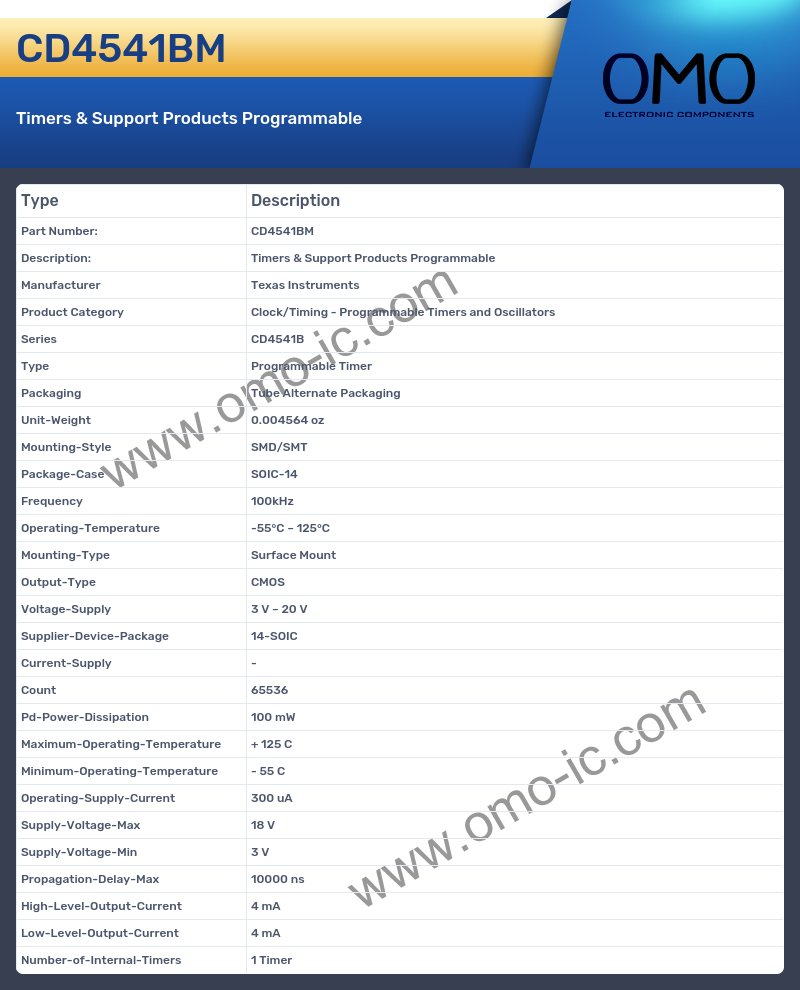

CD4541BM Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series CD4541B
• Type Programmable Timer
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Frequency 100kHz
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 14-SOIC
• Current-Supply -
• Count 65536
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 300 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Max 10000 ns
• High-Level-Output-Current 4 mA
• Low-Level-Output-Current 4 mA
• Number-of-Internal-Timers 1 Timer
