CD4520BME4

CD4520BME4 Overview

Product belongs to the 4000B series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Up directionality Voltage Supply Range: 3 V ~ 18 V Supplier device package: 16-SOIC 2 element Binary Counter logic type 4 bits per element This product's Asynchronous. Synchronous timing The 8MHz count rate. Positive, Negative trigger type

CD4520BME4 Image

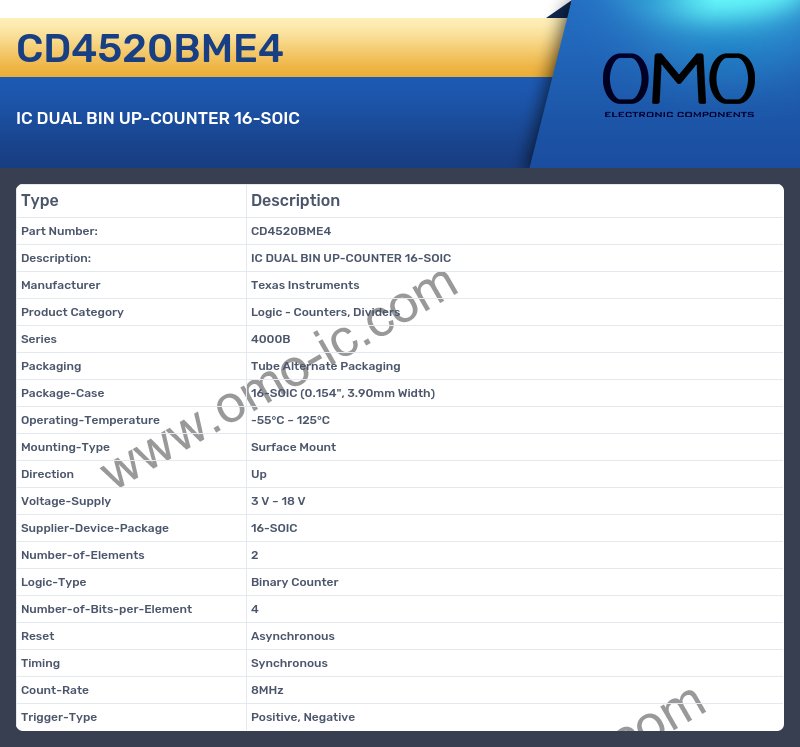

CD4520BME4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 4000B
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Direction Up
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 16-SOIC
• Number-of-Elements 2
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 4
• Reset Asynchronous
• Timing Synchronous
• Count-Rate 8MHz
• Trigger-Type Positive, Negative
