CD4097BE

CD4097BE Overview

Product belongs to the CD4097B series. This product is categorized as Multiplexers/Demultiplexers Tube is the packaging method for this product Weight of 0.131759 oz Through Hole Mounting-Style Number of channels: 8 Channel Configuration 2 x 8 20 Mhz bandwidth Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 5 V to 18 V supply voltage for reliable performance. Maximum supply current: 100 uA Maximum supply voltage of 18 V Minimum supply voltage is 5 V PDIP-24 60 ns is 23 microseconds. Single Supply supply type Max on-resistance of 240 Ohms Maximum off time: 440 ns Maximum on-time: 650 ns

CD4097BE Image

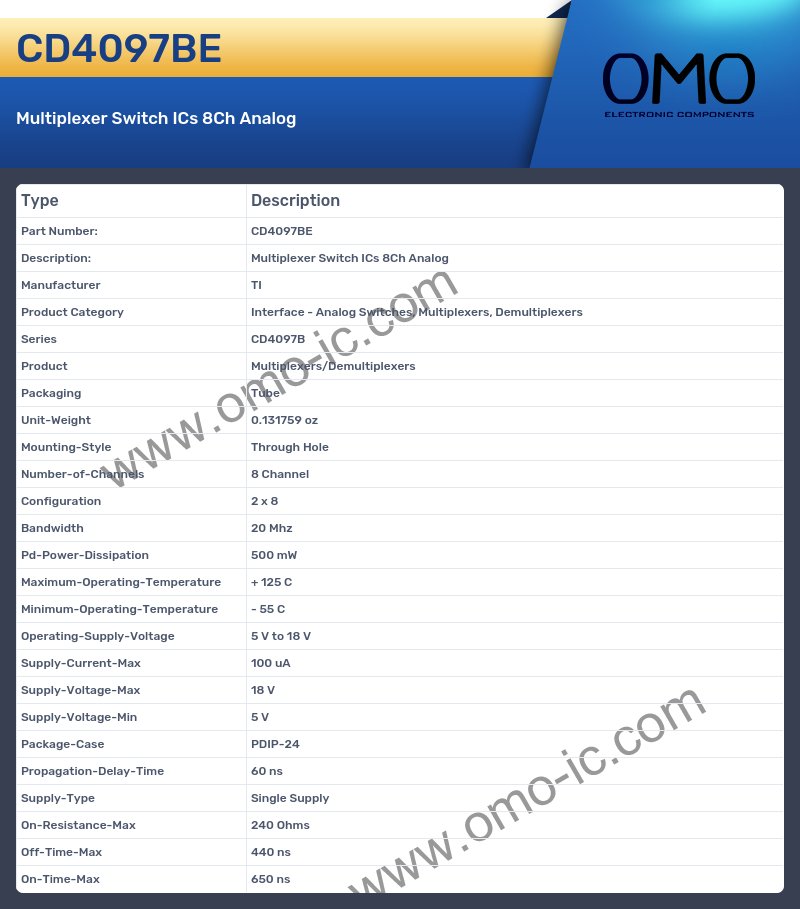

CD4097BE Specifications

• Manufacturer TI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series CD4097B
• Product Multiplexers/Demultiplexers
• Packaging Tube
• Unit-Weight 0.131759 oz
• Mounting-Style Through Hole
• Number-of-Channels 8 Channel
• Configuration 2 x 8
• Bandwidth 20 Mhz
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 5 V to 18 V
• Supply-Current-Max 100 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 5 V
• Package-Case PDIP-24
• Propagation-Delay-Time 60 ns
• Supply-Type Single Supply
• On-Resistance-Max 240 Ohms
• Off-Time-Max 440 ns
• On-Time-Max 650 ns
