CD4076BMG4

CD4076BMG4 Overview

Product belongs to the 4000B series. Type: D-Type Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Product function is Reset. Voltage Supply Range: 3 V ~ 18 V 16MHz is 26GHz. 1 element 4 bits per element Positive Edge trigger type

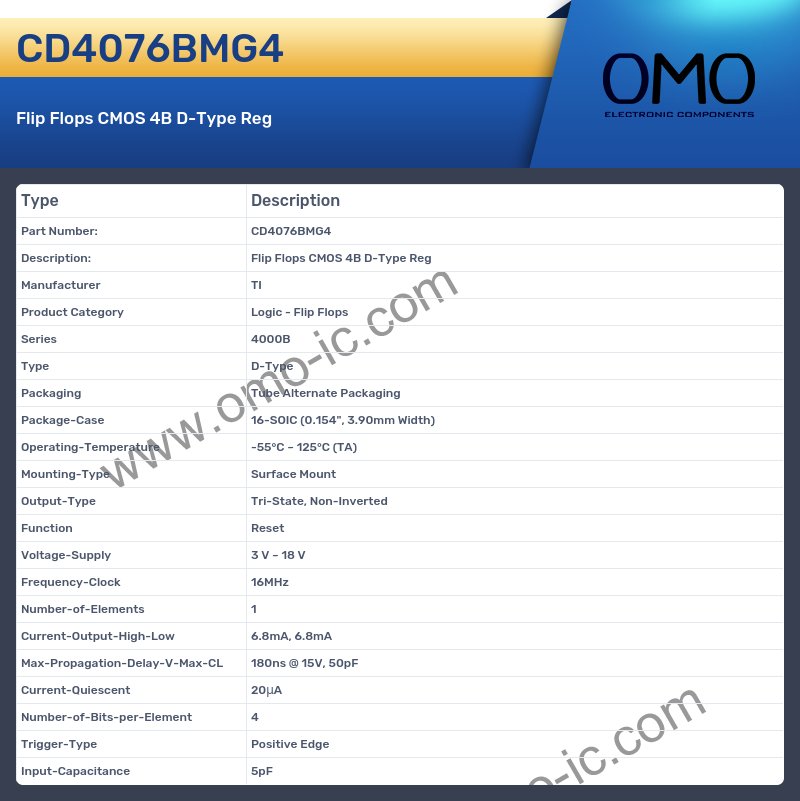

CD4076BMG4 Image

CD4076BMG4 Specifications

• Manufacturer TI
• Product Category Logic - Flip Flops
• Series 4000B
• Type D-Type
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Function Reset
• Voltage-Supply 3 V ~ 18 V
• Frequency-Clock 16MHz
• Number-of-Elements 1
• Current-Output-High-Low 6.8mA, 6.8mA
• Max-Propagation-Delay-V-Max-CL 180ns @ 15V, 50pF
• Current-Quiescent 20μA
• Number-of-Bits-per-Element 4
• Trigger-Type Positive Edge
• Input-Capacitance 5pF
