CD4059AM

CD4059AM Overview

Product belongs to the 4000 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications SOIC-24 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Down directionality Voltage Supply Range: 3 V ~ 12 V Supplier device package: 24-SOIC 1 bit bits 1 element Divide-by-N logic type 16 bits per element This product's Asynchronous. - timing The 12MHz count rate. Positive Edge trigger type This product operates at a 3 V to 18 V supply voltage for reliable performance. CD4000 logic type Synchronous counting-method Down counting sequence

CD4059AM Image

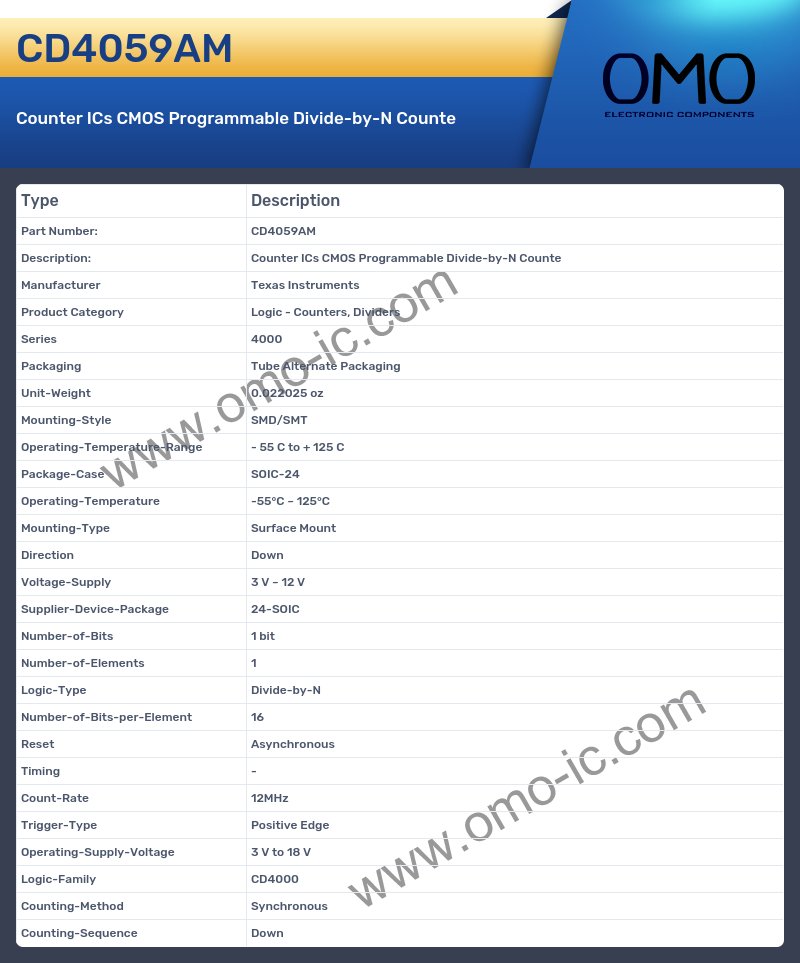

CD4059AM Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 4000
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case SOIC-24
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Direction Down
• Voltage-Supply 3 V ~ 12 V
• Supplier-Device-Package 24-SOIC
• Number-of-Bits 1 bit
• Number-of-Elements 1
• Logic-Type Divide-by-N
• Number-of-Bits-per-Element 16
• Reset Asynchronous
• Timing -
• Count-Rate 12MHz
• Trigger-Type Positive Edge
• Operating-Supply-Voltage 3 V to 18 V
• Logic-Family CD4000
• Counting-Method Synchronous
• Counting-Sequence Down
