CD4052BPW Overview

Product belongs to the CD4052B series. This product is categorized as Multiplexers/Demultiplexers Tube is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 25 Mhz bandwidth Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 5 V to 18 V supply voltage for reliable performance. Maximum supply current: 100 uA Maximum supply voltage of 18 V Minimum supply voltage is 5 V TSSOP-16 60 ns is 23 microseconds. Maximum dual supply voltage: +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 450 ns Maximum on-time: 720 ns

CD4052BPW Image

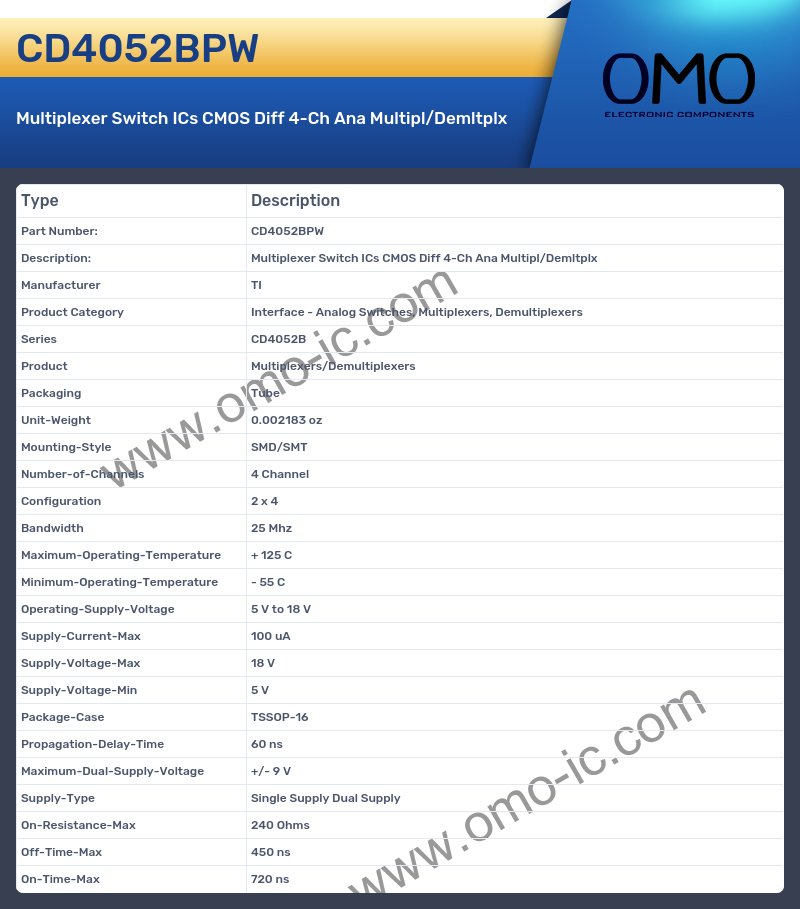

CD4052BPW Specifications

• Manufacturer TI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series CD4052B
• Product Multiplexers/Demultiplexers
• Packaging Tube
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Bandwidth 25 Mhz
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 5 V to 18 V
• Supply-Current-Max 100 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 5 V
• Package-Case TSSOP-16
• Propagation-Delay-Time 60 ns
• Maximum-Dual-Supply-Voltage +/- 9 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 240 Ohms
• Off-Time-Max 450 ns
• On-Time-Max 720 ns
