CC2520RHDR

CC2520RHDR Overview

Product belongs to the CC2520 series. Type: TxRx + MCU Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002526 oz VQFN-28 This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C Frequency Bandwidth: 2394 MHz to 2507 MHz Sensitivity: -98dBm Voltage Supply Range: 1.8 V ~ 3.8 V This product comes with a 768B RAM memory size. Data rate maximum is 250kbps . Serial Interfaces: SPI 5dBm Current receiving is 18.5mA ~ 22.3mA 802.15.4 is the RF family standard. DSSS, O-QPSK modulated The device has 6 GPIOs. 25.8mA ~ 33.6mA range: 8.7mA to 32.1mA Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.8 V supply voltage for reliable performance. Maximum data rate is 250 kb/s This product is also known as HPA00399RHDR and can be referred to by either part number. Maximum supply voltage of 3.8 V Minimum supply voltage is 1.8 V OQPSK are the supported modulation formats.

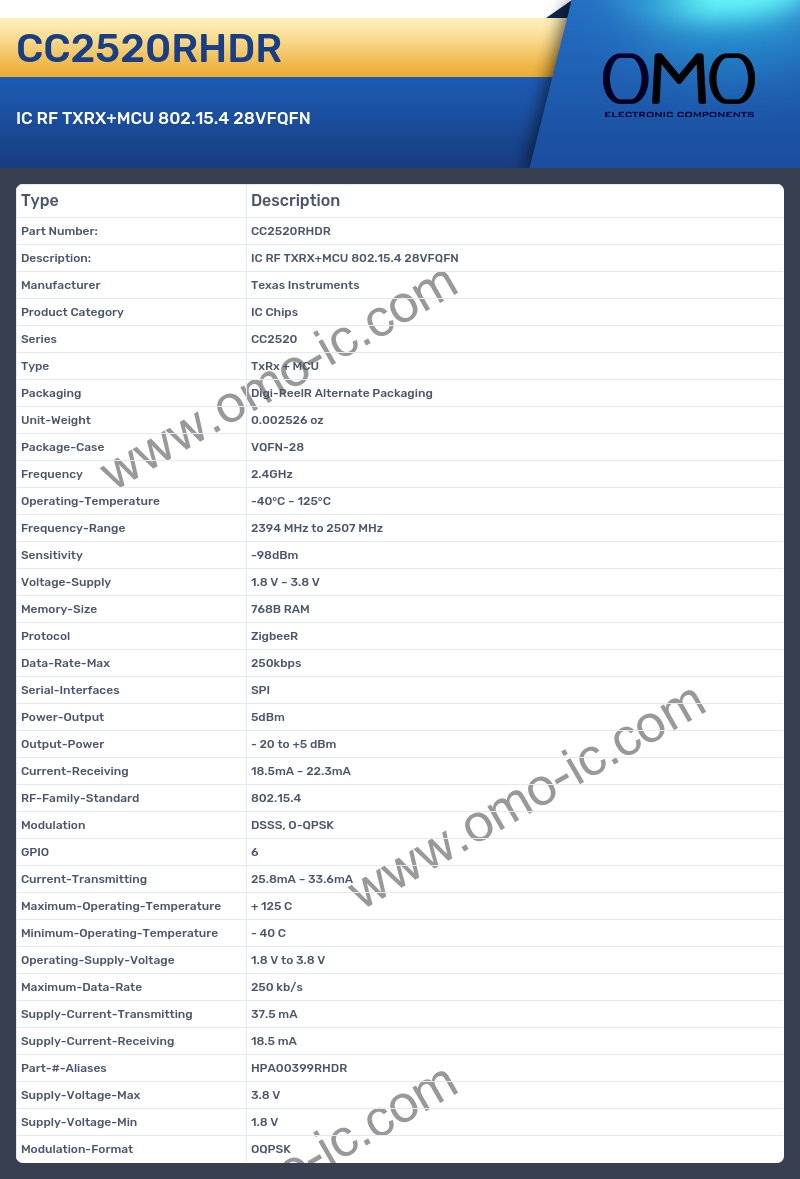

CC2520RHDR Image

CC2520RHDR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series CC2520
• Type TxRx + MCU
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002526 oz
• Package-Case VQFN-28
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 125°C
• Frequency-Range 2394 MHz to 2507 MHz
• Sensitivity -98dBm
• Voltage-Supply 1.8 V ~ 3.8 V
• Memory-Size 768B RAM
• Protocol ZigbeeR
• Data-Rate-Max 250kbps
• Serial-Interfaces SPI
• Power-Output 5dBm
• Output-Power - 20 to +5 dBm
• Current-Receiving 18.5mA ~ 22.3mA
• RF-Family-Standard 802.15.4
• Modulation DSSS, O-QPSK
• GPIO 6
• Current-Transmitting 25.8mA ~ 33.6mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.8 V
• Maximum-Data-Rate 250 kb/s
• Supply-Current-Transmitting 37.5 mA
• Supply-Current-Receiving 18.5 mA
• Part-#-Aliases HPA00399RHDR
• Supply-Voltage-Max 3.8 V
• Supply-Voltage-Min 1.8 V
• Modulation-Format OQPSK
