CC1000PW

CC1000PW Overview

Product belongs to the CC1000 series. Type: TxRx Only Tube Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 This product's 315MHz, 433MHz, 868MHz, 915MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 300 MHz to 1000 MHz Sensitivity: -110dBm Voltage Supply Range: 2.1 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 76.8kBaud . Serial Interfaces: UART 10dBm (Max) Current receiving is 7.4mA ~ 9.6mA General ISM is the RF family standard. FSK modulated The device has GPIOs. 5.3mA ~ 26.7mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.1 V to 3.6 V supply voltage for reliable performance. 3-Wire interface type Maximum data rate is 76.8 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 2.1 V The product has 1 receivers. FSK OOK are the supported modulation formats. The number of transmitters is 1.

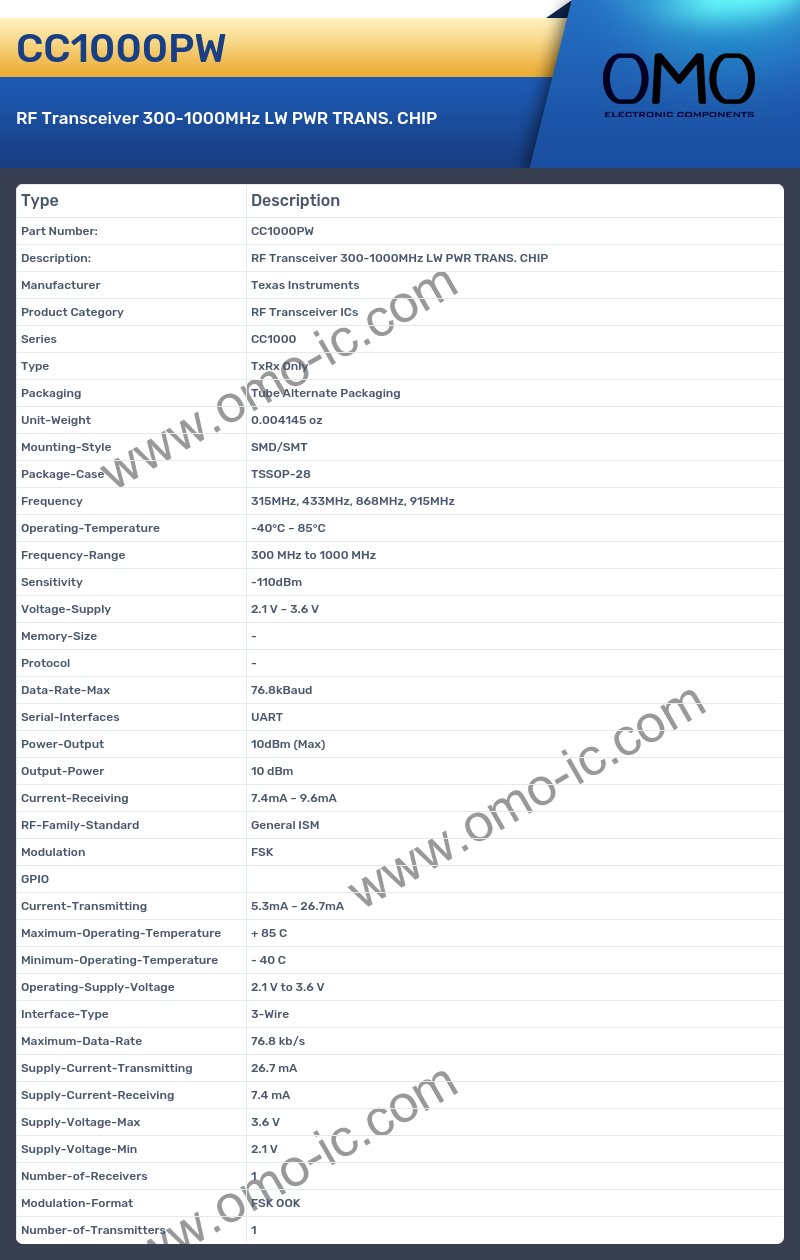

CC1000PW Image

CC1000PW Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series CC1000
• Type TxRx Only
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Frequency 315MHz, 433MHz, 868MHz, 915MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 300 MHz to 1000 MHz
• Sensitivity -110dBm
• Voltage-Supply 2.1 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 76.8kBaud
• Serial-Interfaces UART
• Power-Output 10dBm (Max)
• Output-Power 10 dBm
• Current-Receiving 7.4mA ~ 9.6mA
• RF-Family-Standard General ISM
• Modulation FSK
• GPIO
• Current-Transmitting 5.3mA ~ 26.7mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.1 V to 3.6 V
• Interface-Type 3-Wire
• Maximum-Data-Rate 76.8 kb/s
• Supply-Current-Transmitting 26.7 mA
• Supply-Current-Receiving 7.4 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.1 V
• Number-of-Receivers 1
• Modulation-Format FSK OOK
• Number-of-Transmitters 1
