BUF05704AIPWP

BUF05704AIPWP Overview

Product belongs to the BUF05704 series. This product is categorized as LCD Gamma Buffers Tube Alternate Packaging is the packaging method for this product Weight of 0.002046 oz SMD/SMT Mounting-Style HTSSOP-14 Surface Mount mounting type Output-Type: Rail-to-Rail Versatile TFT-LCD Panels: Gamma Buffer, VCOM Driver applications for maximum usability Number of channels: 4 Channel Supplier device package: 14-HTSSOP 4 is 8. Voltage supply range: 4.5 V ~ 18 V This product has a 5mA of 200μA. The 1MHz The 1.6 V/μs. Current-Output-Channel is - Power-off control: No Shutdown Power-off control: 2670 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 7.5 mA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 7 V Input bias current of 1 pA The 30 mV. The 62 dB.

BUF05704AIPWP Image

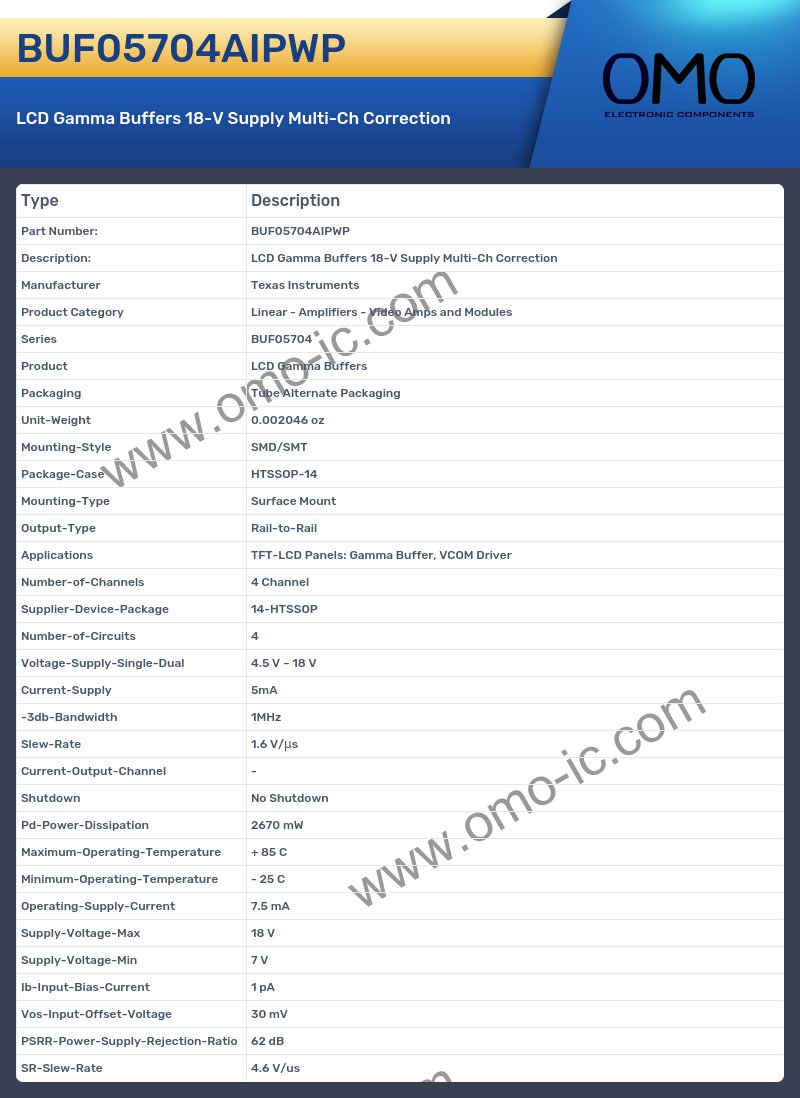

BUF05704AIPWP Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series BUF05704
• Product LCD Gamma Buffers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002046 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-14
• Mounting-Type Surface Mount
• Output-Type Rail-to-Rail
• Applications TFT-LCD Panels: Gamma Buffer, VCOM Driver
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-HTSSOP
• Number-of-Circuits 4
• Voltage-Supply-Single-Dual 4.5 V ~ 18 V
• Current-Supply 5mA
• -3db-Bandwidth 1MHz
• Slew-Rate 1.6 V/μs
• Current-Output-Channel -
• Shutdown No Shutdown
• Pd-Power-Dissipation 2670 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 7.5 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 7 V
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 30 mV
• PSRR-Power-Supply-Rejection-Ratio 62 dB
• SR-Slew-Rate 4.6 V/us
