ALED7707TR

ALED7707TR Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as LED Lighting Drivers Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style QFN-EP-24 This product's 250kHz ~ 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Open Drain Versatile Automotive, Backlight applications for maximum usability Supplier device package: 24-QFN (5x5) Number-of-Outputs: 6 Current-Output-Channel is 85mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 36V. The minimum 4.5V required for voltage supply. Output voltage: 36V Dimming control is done through PWM communication. Power-off control: 2.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The operating frequency is 250 kHz to 1 MHz. Input Voltage Range: 4.5 V to 36 V Output current: 85 mA Maximum supply current: 2.8 mA

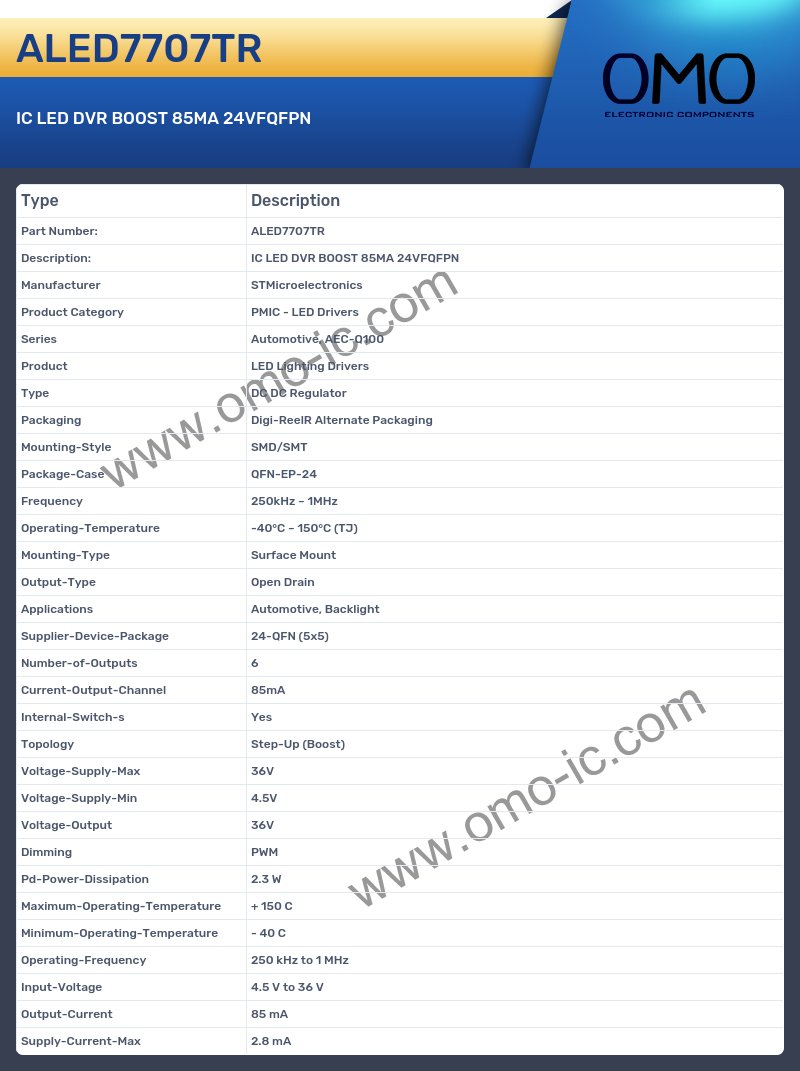

ALED7707TR Image

ALED7707TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series Automotive, AEC-Q100
• Product LED Lighting Drivers
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case QFN-EP-24
• Frequency 250kHz ~ 1MHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Applications Automotive, Backlight
• Supplier-Device-Package 24-QFN (5x5)
• Number-of-Outputs 6
• Current-Output-Channel 85mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 36V
• Voltage-Supply-Min 4.5V
• Voltage-Output 36V
• Dimming PWM
• Pd-Power-Dissipation 2.3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 250 kHz to 1 MHz
• Input-Voltage 4.5 V to 36 V
• Output-Current 85 mA
• Supply-Current-Max 2.8 mA
