ADS8508IBDW

ADS8508IBDW Overview

Product belongs to the ADS8508 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 20-SOIC This product's 250k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 73 dB Number-of-Converters: 1 Converter 250 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 0.45 LSB Differential nonlinearity: +/- 0.45 LSB

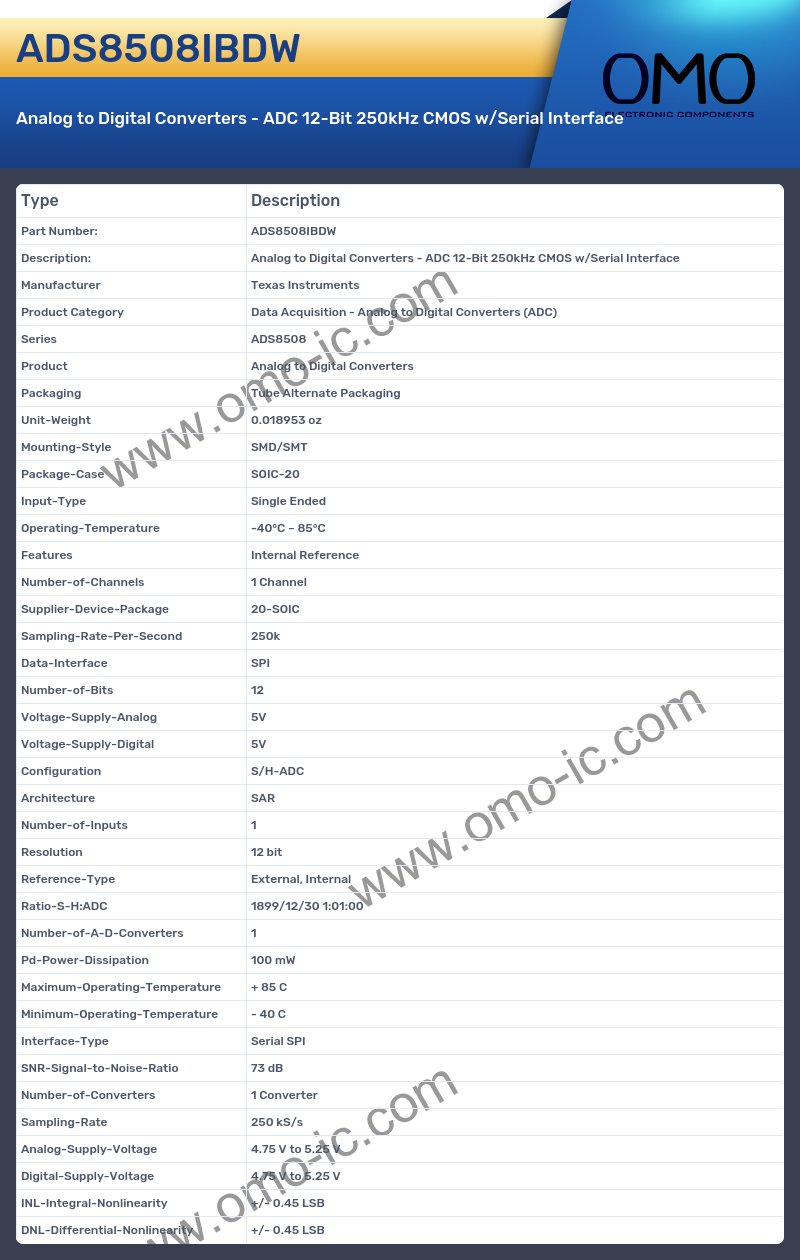

ADS8508IBDW Image

ADS8508IBDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS8508
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-SOIC
• Sampling-Rate-Per-Second 250k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 73 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 250 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.45 LSB
• DNL-Differential-Nonlinearity +/- 0.45 LSB
