ADS8345N

ADS8345N Overview

Product belongs to the ADS8345 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel/8 Channel Supplier device package: 20-SSOP This product's 100k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 10 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 4-Wire SPI interface type The ADS8345EVM. Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 8 LSB Differential nonlinearity: +/- 2 LSB

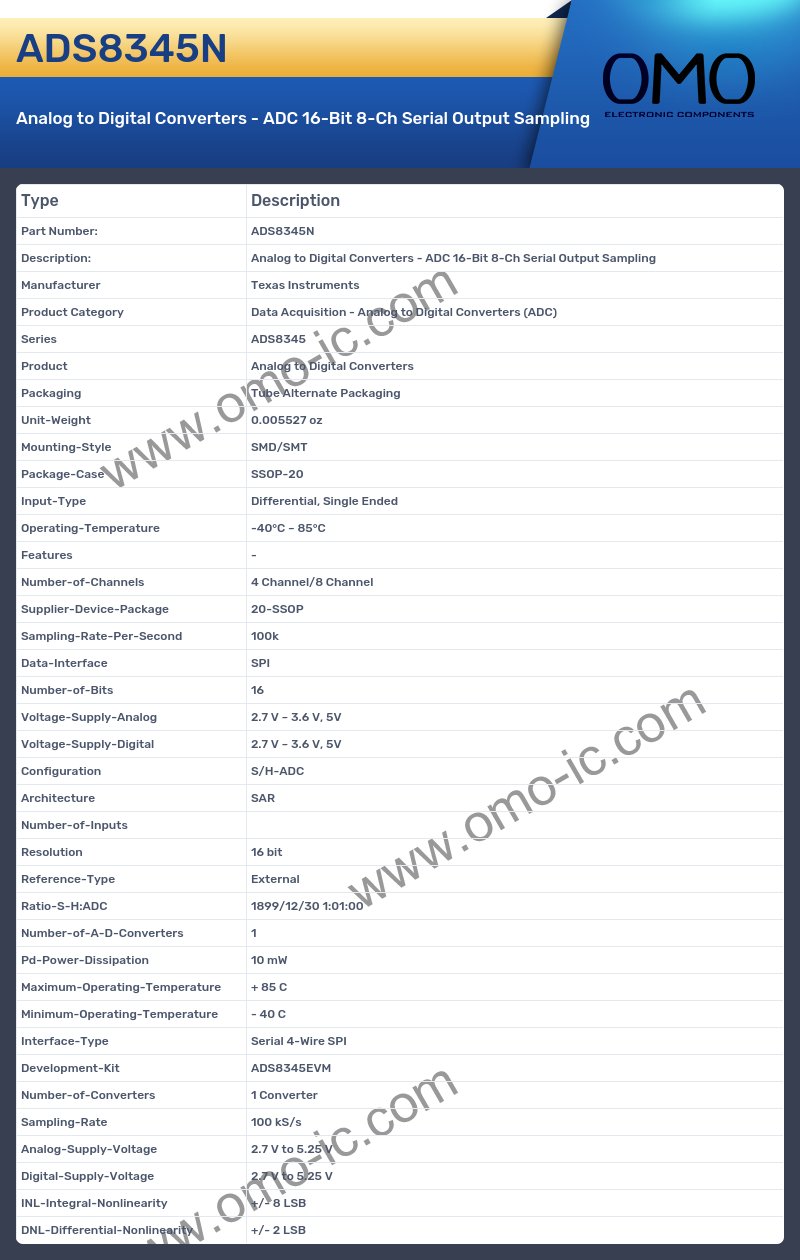

ADS8345N Image

ADS8345N Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS8345
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 4 Channel/8 Channel
• Supplier-Device-Package 20-SSOP
• Sampling-Rate-Per-Second 100k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 10 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 4-Wire SPI
• Development-Kit ADS8345EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 8 LSB
• DNL-Differential-Nonlinearity +/- 2 LSB
