ADS800U

ADS800U Overview

Product belongs to the ADS800 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC This product's 40M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 465 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 64 dB Number-of-Converters: 1 Converter 40 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 1.9 LSB Differential nonlinearity: +/- 1 LSB

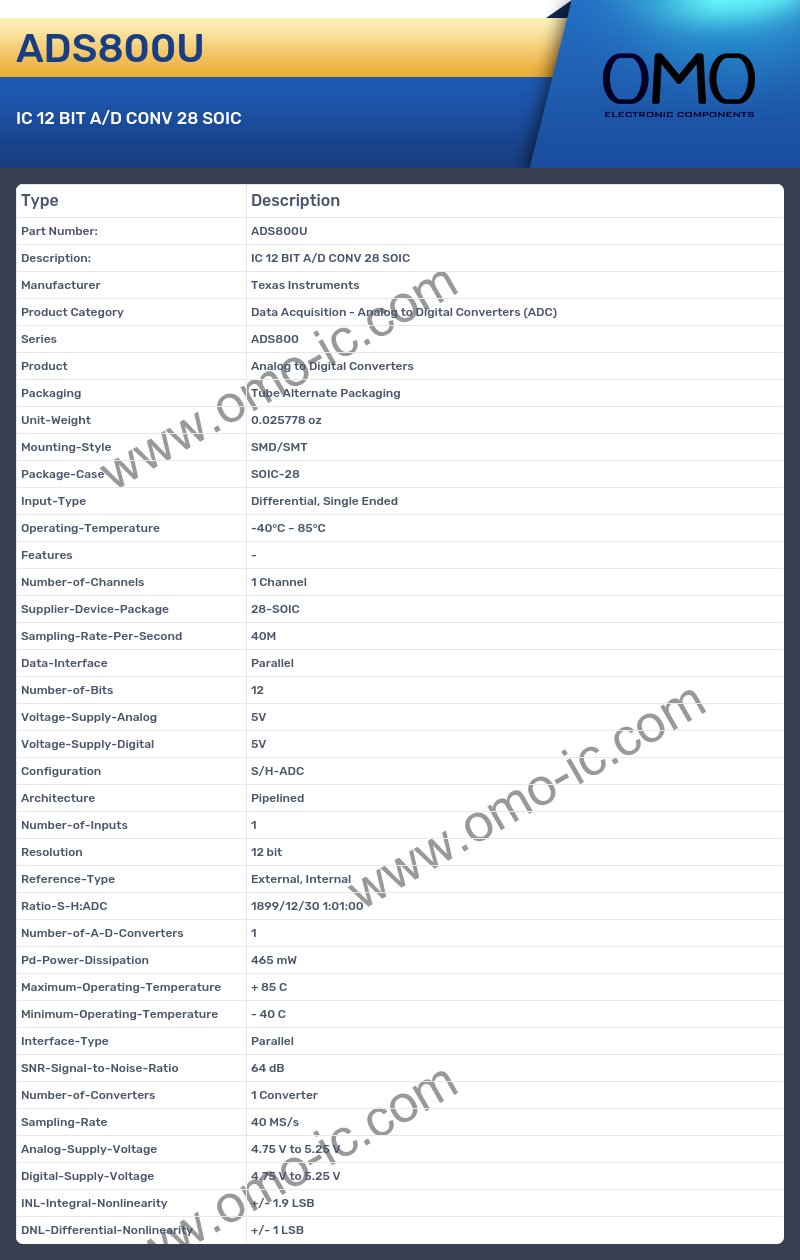

ADS800U Image

ADS800U Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS800
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 40M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 465 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 64 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 40 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.9 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
