ADS7805UB

ADS7805UB Overview

Product belongs to the ADS7805 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC This product's 100k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Parallel interface type Signal-to-Noise Ratio of 86 dB The ADS7805EVM. Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 3 LSB

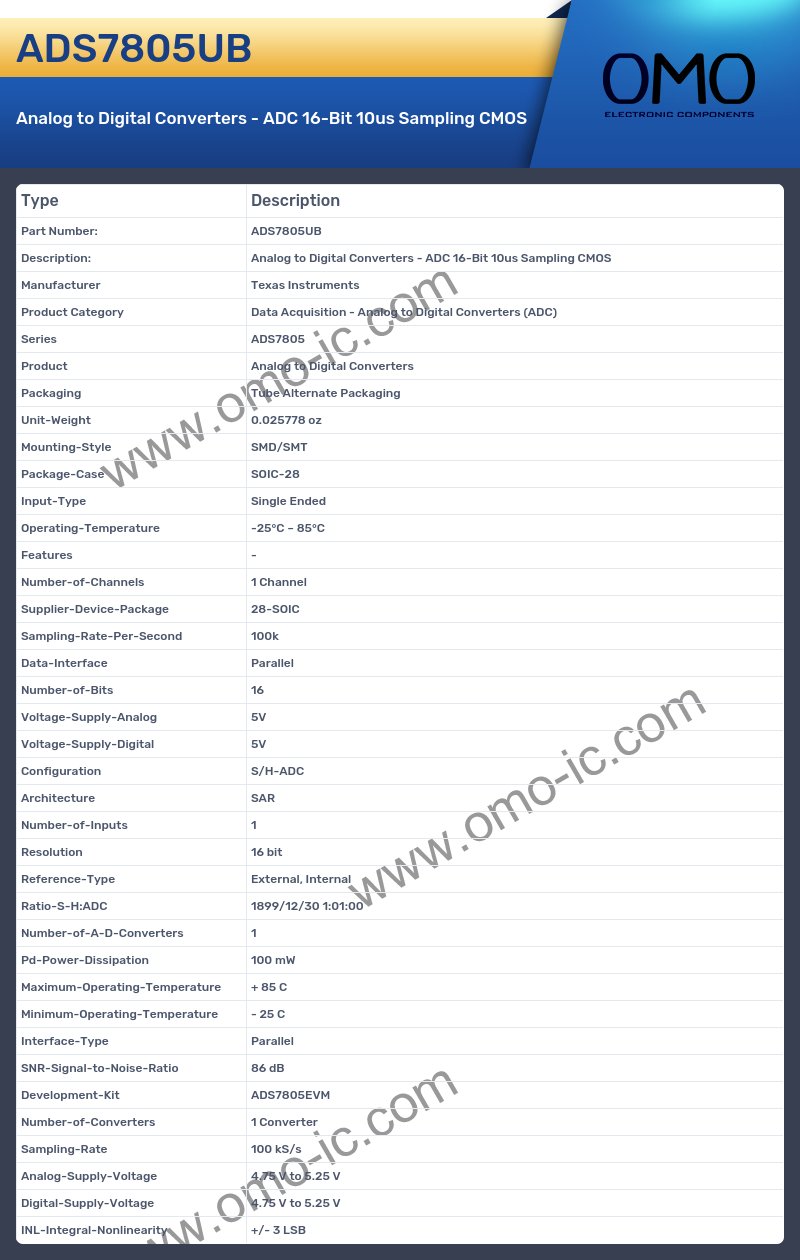

ADS7805UB Image

ADS7805UB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7805
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Single Ended
• Operating-Temperature -25°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 100k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 86 dB
• Development-Kit ADS7805EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 3 LSB
