ADS1250U

ADS1250U Overview

Product belongs to the ADS1250 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 16-SOIC This product's 25k. Data-Interface: SPI 20 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 25 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 0.002 %FSR Reference voltage is 4.096 V . Differential nonlinearity: +/- 1 LSB

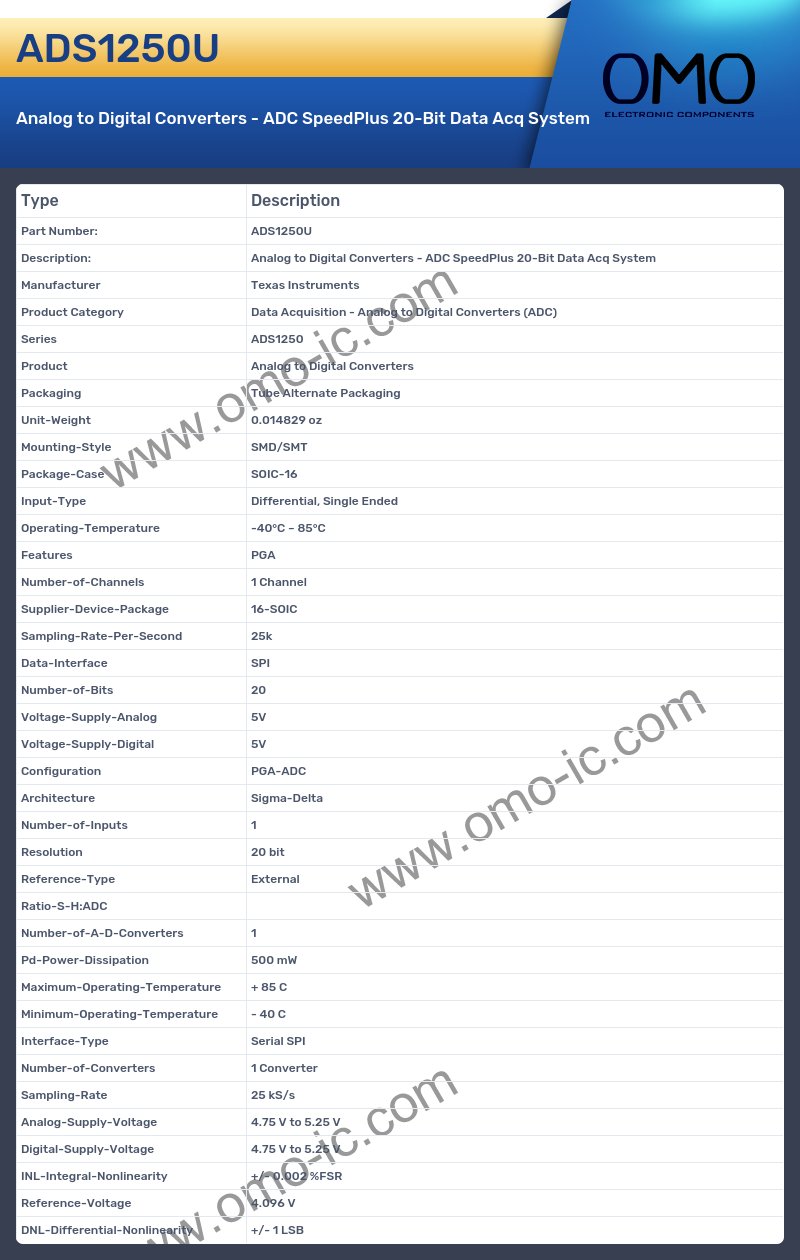

ADS1250U Image

ADS1250U Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1250
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 25k
• Data-Interface SPI
• Number-of-Bits 20
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 20 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 25 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.002 %FSR
• Reference-Voltage 4.096 V
• DNL-Differential-Nonlinearity +/- 1 LSB
