ADC1173CIMTC/NOPB

ADC1173CIMTC/NOPB Overview

Product belongs to the ADC1173 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.007478 oz SMD/SMT Mounting-Style TSSOP-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 75°C Number of channels: 1 Channel Supplier device package: 24-TSSOP This product's 15M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Two-Step . External, Internal is the reference type. 1 units Power-off control: 36 mW Maximum operating temperature of + 75 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 49 dB The 1.5 % FSR of this product is 0.2%. Number-of-Converters: 1 Converter 15 MS/s Sampling Rate Analog supply voltage: 2.7 V to 3.6 V Digital Supply Voltage: 2.7 V to 3.6 V Integral Nonlinearity: 1.3 LSB Differential nonlinearity: 0.85 LSB

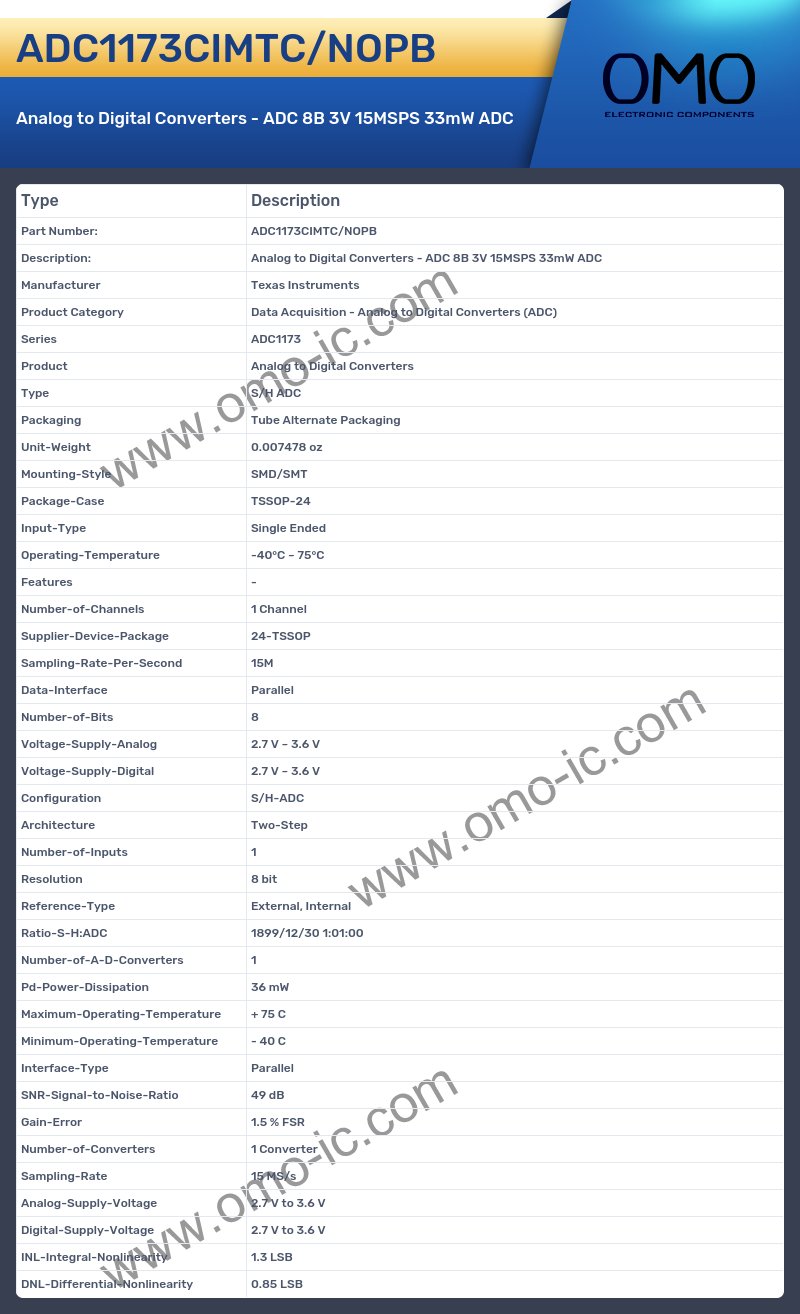

ADC1173CIMTC/NOPB Image

ADC1173CIMTC/NOPB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC1173
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007478 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 75°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-TSSOP
• Sampling-Rate-Per-Second 15M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 3.6 V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Two-Step
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 36 mW
• Maximum-Operating-Temperature + 75 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 49 dB
• Gain-Error 1.5 % FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 15 MS/s
• Analog-Supply-Voltage 2.7 V to 3.6 V
• Digital-Supply-Voltage 2.7 V to 3.6 V
• INL-Integral-Nonlinearity 1.3 LSB
• DNL-Differential-Nonlinearity 0.85 LSB
