AD780BN

AD780BN Overview

Product belongs to the - series. Tube is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Programmable Supplier device package: 8-PDIP Tolerance of ±0.04%, ±0.03% 4 V ~ 36 V voltage input This product has a 1mA of 200μA. Series, Shunt is the reference type. Minimum fixed output voltage is ±2.5V, ±3V . 3ppm/°C is 30 parts per million per degree Celsius. 4μVp-p of noise in 0#1Hz-to-10Hz range

AD780BN Image

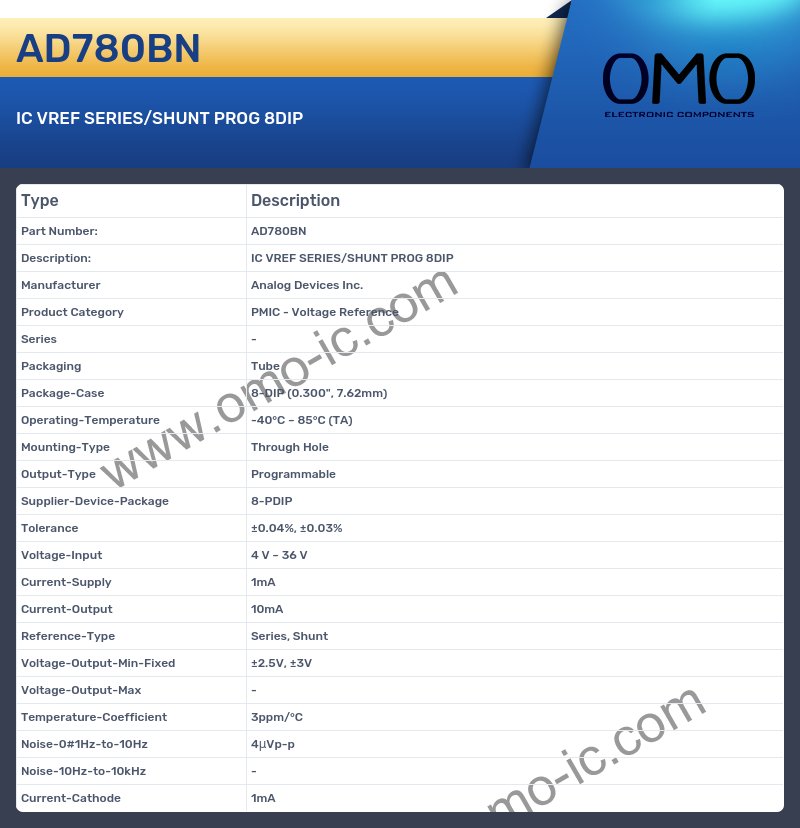

AD780BN Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series -
• Packaging Tube
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Programmable
• Supplier-Device-Package 8-PDIP
• Tolerance ±0.04%, ±0.03%
• Voltage-Input 4 V ~ 36 V
• Current-Supply 1mA
• Current-Output 10mA
• Reference-Type Series, Shunt
• Voltage-Output-Min-Fixed ±2.5V, ±3V
• Voltage-Output-Max -
• Temperature-Coefficient 3ppm/°C
• Noise-0#1Hz-to-10Hz 4μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode 1mA
