AD7228ABR

AD7228ABR Overview

Product belongs to the AD7228 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 24-SOIC W Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 10.8 V ~ 16.5 V, -5V. The Voltage Supply Digital for this product is 13.5 V ~ 16.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 5μs, 7μs is an impressive 15 us. No Differential-Output Power-off control: No Shutdown Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 16 mA is 92 nA. Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 10.8 V 13.5 V The +/- 1 LSB of this product is 0.2%. Number-of-Converters: 8 Converter 200 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

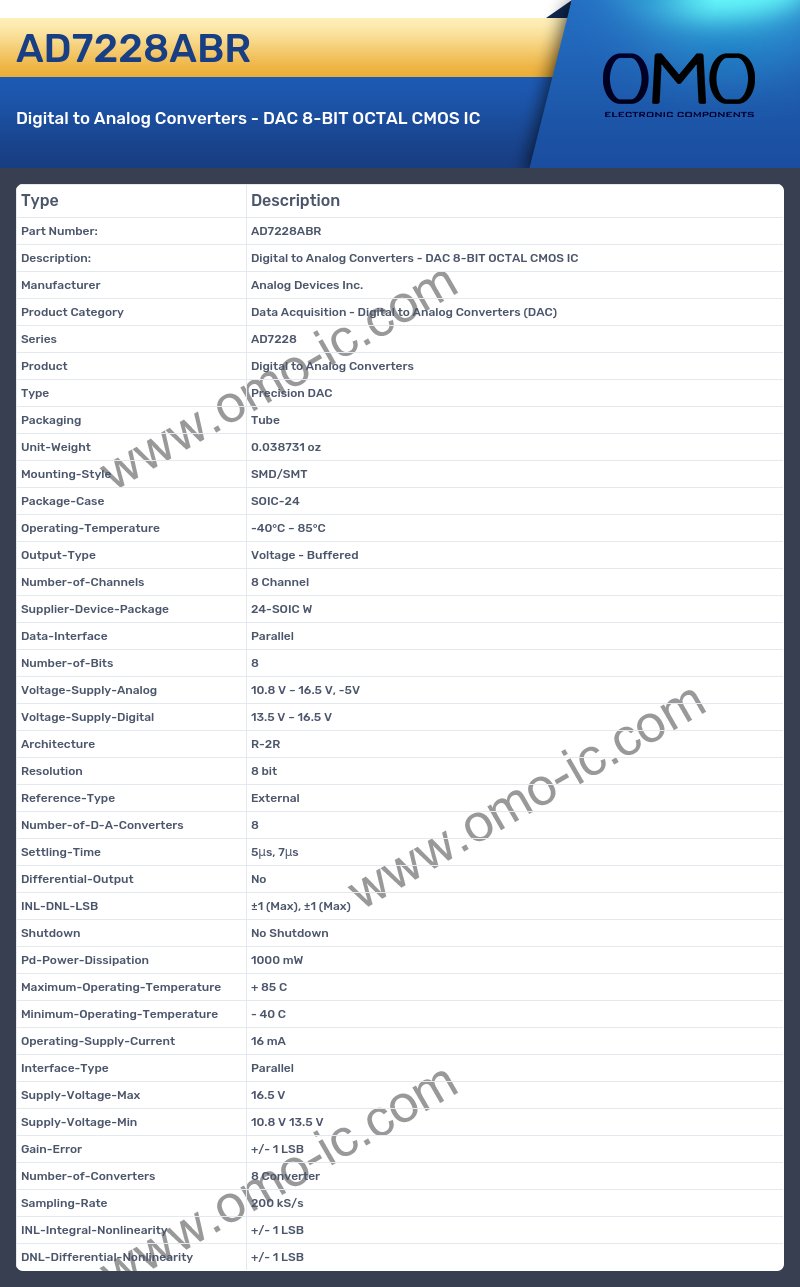

AD7228ABR Image

AD7228ABR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7228
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 24-SOIC W
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 10.8 V ~ 16.5 V, -5V
• Voltage-Supply-Digital 13.5 V ~ 16.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 5μs, 7μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Shutdown No Shutdown
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 16 mA
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 10.8 V 13.5 V
• Gain-Error +/- 1 LSB
• Number-of-Converters 8 Converter
• Sampling-Rate 200 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
