UCC3808APW-2

UCC3808APW-2 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 1 MHz is 60 kHz. - 300 mV to + 6 V Input Voltage Output current: 1 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. Tube packaging for easy dispensing Isolated is the isolation property. Switching Controllers This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 25 ns fall time Yes regarding Moisture Sensitivity 15 V operating supply voltage range Switching Controllers product type Rise Time is 25 ns. 150 of 100 PMIC - Power Management ICs as subcategory 1. 0.001376 oz of Unit Weight

UCC3808APW-2 Image

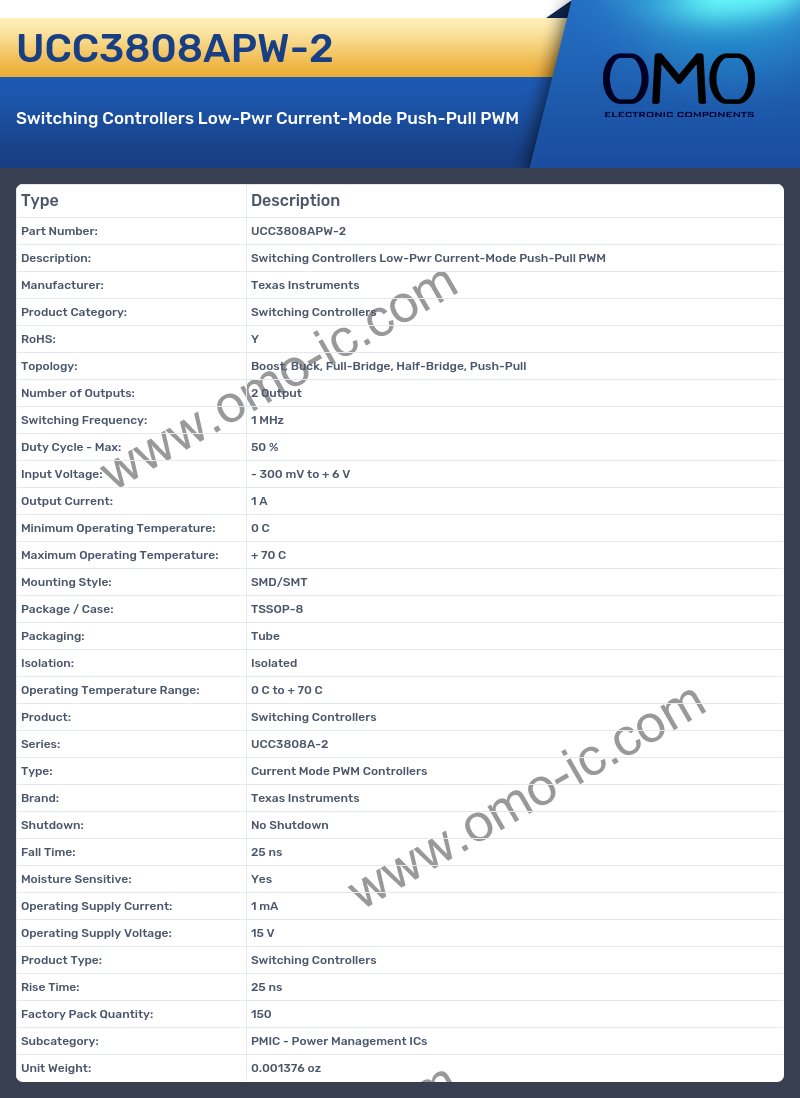

UCC3808APW-2 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 1 MHz
• Duty Cycle - Max: 50 %
• Input Voltage: - 300 mV to + 6 V
• Output Current: 1 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Packaging: Tube
• Isolation: Isolated
• Operating Temperature Range: 0 C to + 70 C
• Product: Switching Controllers
• Series: UCC3808A-2
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Fall Time: 25 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 1 mA
• Operating Supply Voltage: 15 V
• Product Type: Switching Controllers
• Rise Time: 25 ns
• Factory Pack Quantity: 150
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001376 oz
