UCC21540DWR

UCC21540DWR Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 73 mA Rise Time is 5 ns. 6 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 5.5 V Maximum propagation delay: 40 ns 1775 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Output Voltage is 18 V Texas Instruments is a trusted brand for quality electronics CMOS, TTL. Yes regarding Moisture Sensitivity Gate Drivers product type Rds On value of 10 Ohms 2000 of 100 PMIC - Power Management ICs as subcategory

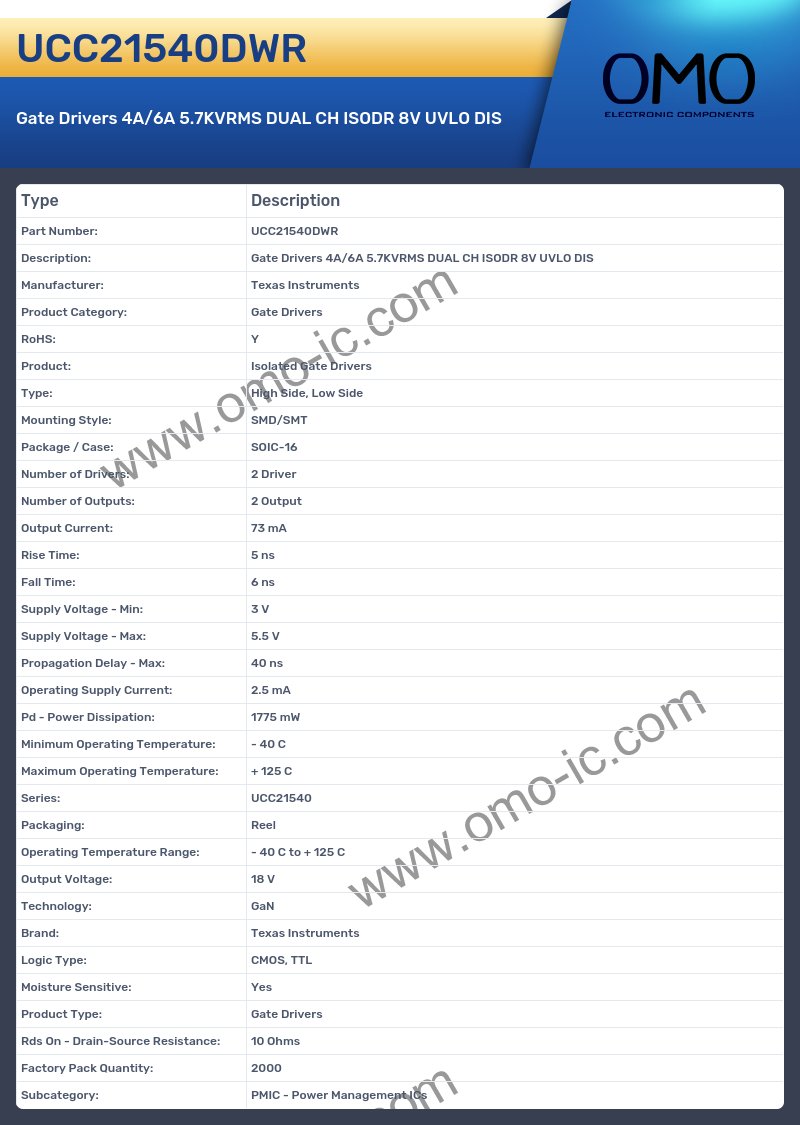

UCC21540DWR Image

UCC21540DWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 73 mA
• Rise Time: 5 ns
• Fall Time: 6 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 5.5 V
• Propagation Delay - Max: 40 ns
• Operating Supply Current: 2.5 mA
• Pd - Power Dissipation: 1775 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCC21540
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 18 V
• Technology: GaN
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Rds On - Drain-Source Resistance: 10 Ohms
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
