UC2710NG4

UC2710NG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 6 A Rise Time is 70 ns. 8 ns fall time Supply Voltage - Min: 4.7 V Supply Voltage - Max: 18 V 1000 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS. 4.7 V to 18 V operating supply voltage range Gate Drivers product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.018646 oz of Unit Weight

UC2710NG4 Image

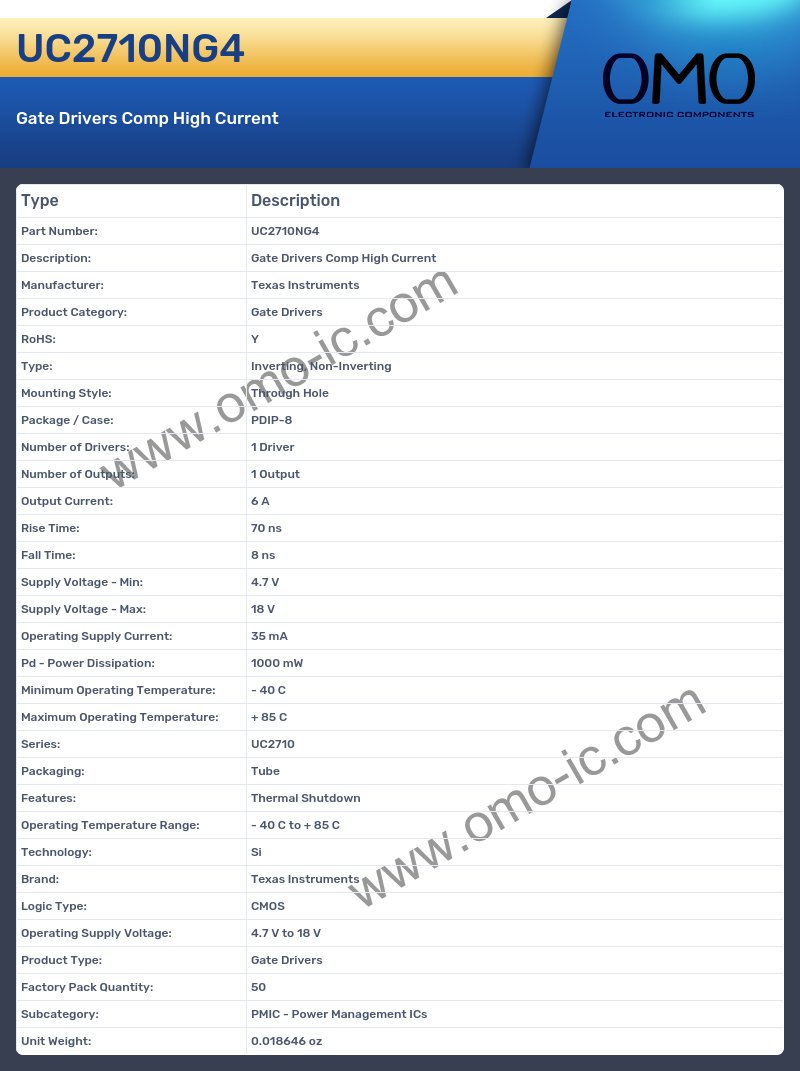

UC2710NG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Inverting, Non-Inverting
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 6 A
• Rise Time: 70 ns
• Fall Time: 8 ns
• Supply Voltage - Min: 4.7 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 35 mA
• Pd - Power Dissipation: 1000 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: UC2710
• Packaging: Tube
• Features: Thermal Shutdown
• Operating Temperature Range: - 40 C to + 85 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Operating Supply Voltage: 4.7 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.018646 oz
