TPS77601PWP

TPS77601PWP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-20 package/case type is utilized by this product. Output Voltage is 1.2 V to 5.5 V Output current: 500 mA 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 10 V The output type is Adjustable. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 169 mV Tube packaging for easy dispensing The height of the product is 1.15 mm. 6.5 mm long Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 169 mV PSRR/Ripple Rejection - Typ is 60 dB Voltage Regulation Accuracy of 2 % is ensured. This product has an 85 uA of 5 uA for precise signal processing. Load regulation is 3 mV. Yes regarding Moisture Sensitivity 7.2 W LDO Voltage Regulators product type 70 of 100 PMIC - Power Management ICs as subcategory 1. 0.002885 oz of Unit Weight

TPS77601PWP Image

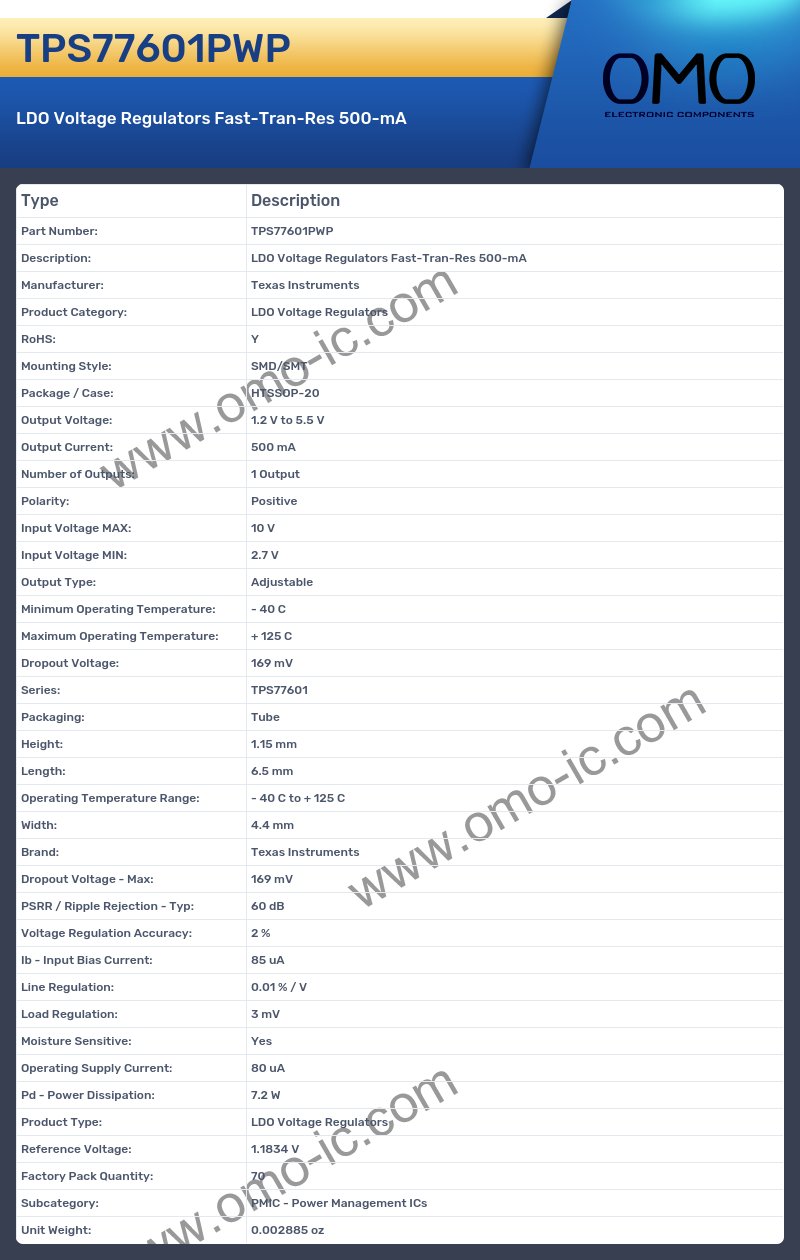

TPS77601PWP Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-20
• Output Voltage: 1.2 V to 5.5 V
• Output Current: 500 mA
• Number of Outputs: 1 Output
• Polarity: Positive
• Input Voltage MAX: 10 V
• Input Voltage MIN: 2.7 V
• Output Type: Adjustable
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 169 mV
• Series: TPS77601
• Packaging: Tube
• Height: 1.15 mm
• Length: 6.5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Width: 4.4 mm
• Brand: Texas Instruments
• Dropout Voltage - Max: 169 mV
• PSRR / Ripple Rejection - Typ: 60 dB
• Voltage Regulation Accuracy: 2 %
• Ib - Input Bias Current: 85 uA
• Line Regulation: 0.01 % / V
• Load Regulation: 3 mV
• Moisture Sensitive: Yes
• Operating Supply Current: 80 uA
• Pd - Power Dissipation: 7.2 W
• Product Type: LDO Voltage Regulators
• Reference Voltage: 1.1834 V
• Factory Pack Quantity: 70
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002885 oz
