TPS1100D

TPS1100D Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 15 V 1.6 A continuous drain current Rds On value of 180 mOhms Gate-Source Voltage: 15 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. 791 mW This product has a Single configuration. The Channel Mode is set to Enhancement. Tube packaging for easy dispensing The height of the product is 1.75 mm. 4.9 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the MOSFET type. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 2.5 S 10 ns fall time MOSFET product type Rise Time is 10 ns. 75 of 100 MOSFETs as subcategory Turn-off delay time is 13 ns. The typical turn-on delay time is 4.5 ns. 1. 0.002677 oz of Unit Weight

TPS1100D Image

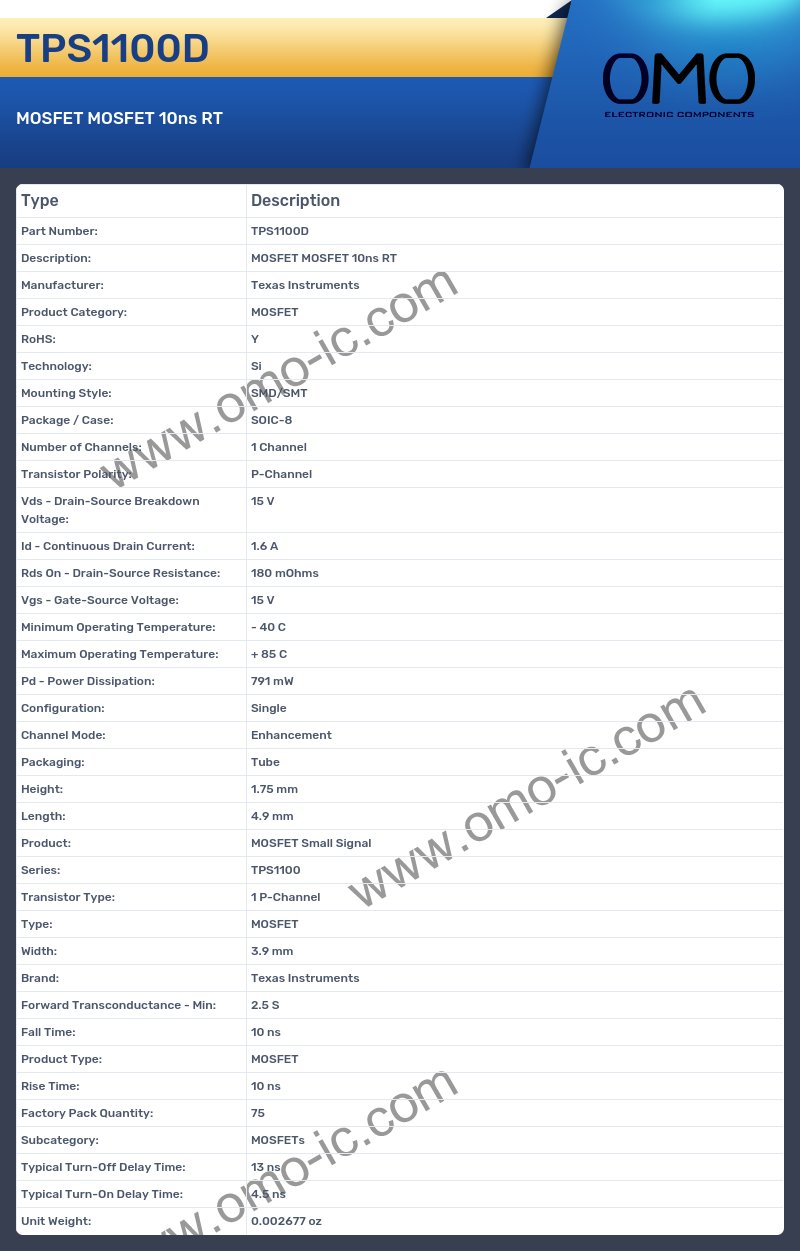

TPS1100D Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 15 V
• Id - Continuous Drain Current: 1.6 A
• Rds On - Drain-Source Resistance: 180 mOhms
• Vgs - Gate-Source Voltage: 15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Pd - Power Dissipation: 791 mW
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Tube
• Height: 1.75 mm
• Length: 4.9 mm
• Product: MOSFET Small Signal
• Series: TPS1100
• Transistor Type: 1 P-Channel
• Type: MOSFET
• Width: 3.9 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 2.5 S
• Fall Time: 10 ns
• Product Type: MOSFET
• Rise Time: 10 ns
• Factory Pack Quantity: 75
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13 ns
• Typical Turn-On Delay Time: 4.5 ns
• Unit Weight: 0.002677 oz
