TLC3544CPWRG4

TLC3544CPWRG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Pseudo-Differential input type Interface Type: 3-Wire, SPI SAR architecture External, Internal is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1 mm. 6.5 mm long Texas Instruments is a trusted brand for quality electronics TLC3544EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 2.7 V to 5.5 V, 4.75 V to 5.5 V operating supply voltage range ADCs - Analog to Digital Converters product type 2000 of 100 Data Converter ICs as subcategory 1. 0.002758 oz of Unit Weight

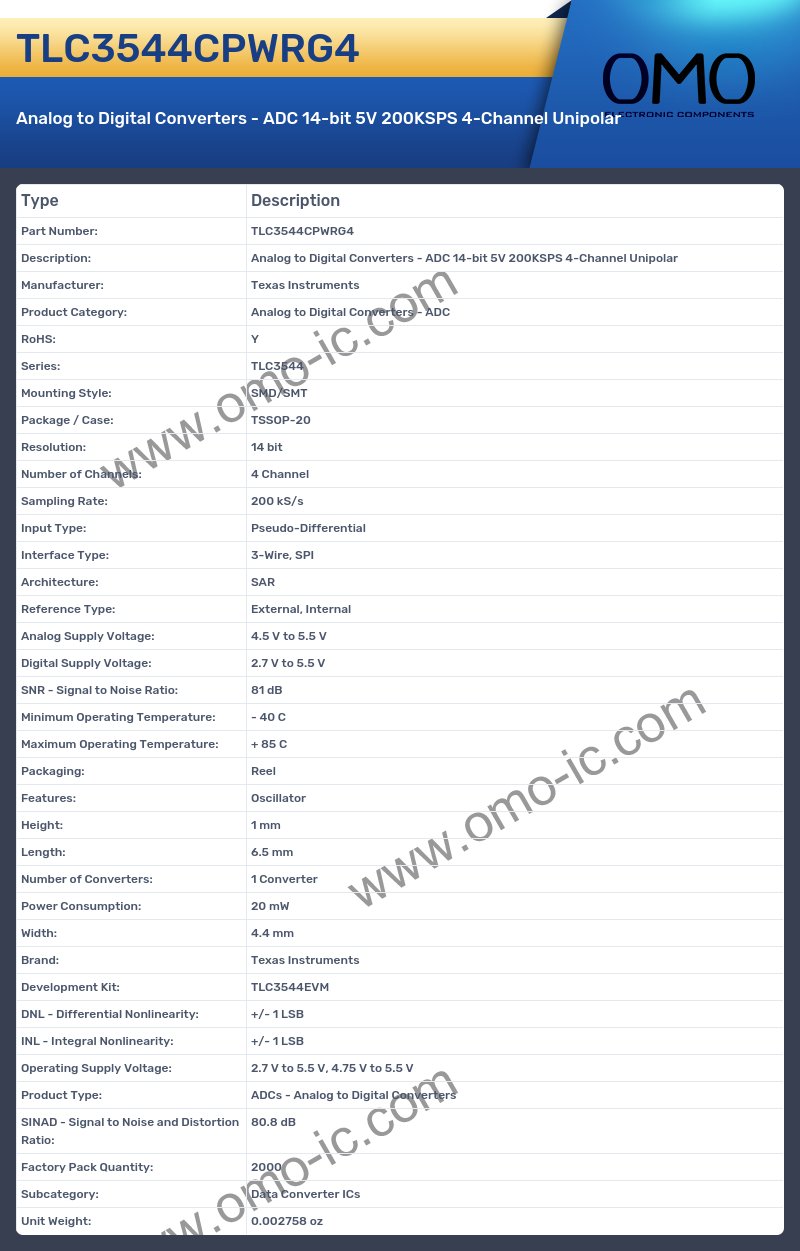

TLC3544CPWRG4 Image

TLC3544CPWRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLC3544
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Resolution: 14 bit
• Number of Channels: 4 Channel
• Sampling Rate: 200 kS/s
• Input Type: Pseudo-Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 2.7 V to 5.5 V
• SNR - Signal to Noise Ratio: 81 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: Oscillator
• Height: 1 mm
• Length: 6.5 mm
• Number of Converters: 1 Converter
• Power Consumption: 20 mW
• Width: 4.4 mm
• Brand: Texas Instruments
• Development Kit: TLC3544EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Voltage: 2.7 V to 5.5 V, 4.75 V to 5.5 V
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 80.8 dB
• Factory Pack Quantity: 2000
• Subcategory: Data Converter ICs
• Unit Weight: 0.002758 oz
