TL7660CD

TL7660CD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Output Voltage is - 1.5 V to - 10 V, 3 V to 20 V Output current: 20 mA Maximum input voltage is 10 V Buck, Boost, Inverting Topology 10 kHz is 60 kHz. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing t's a Inverting, Step Up, Step Down The height of the product is 1.58 mm. 4.9 mm long This device belongs to the Step-Down Regulator type. Texas Instruments is a trusted brand for quality electronics Switching Voltage Regulators product type 75 of 100 PMIC - Power Management ICs as subcategory 1. 0.002561 oz of Unit Weight

TL7660CD Image

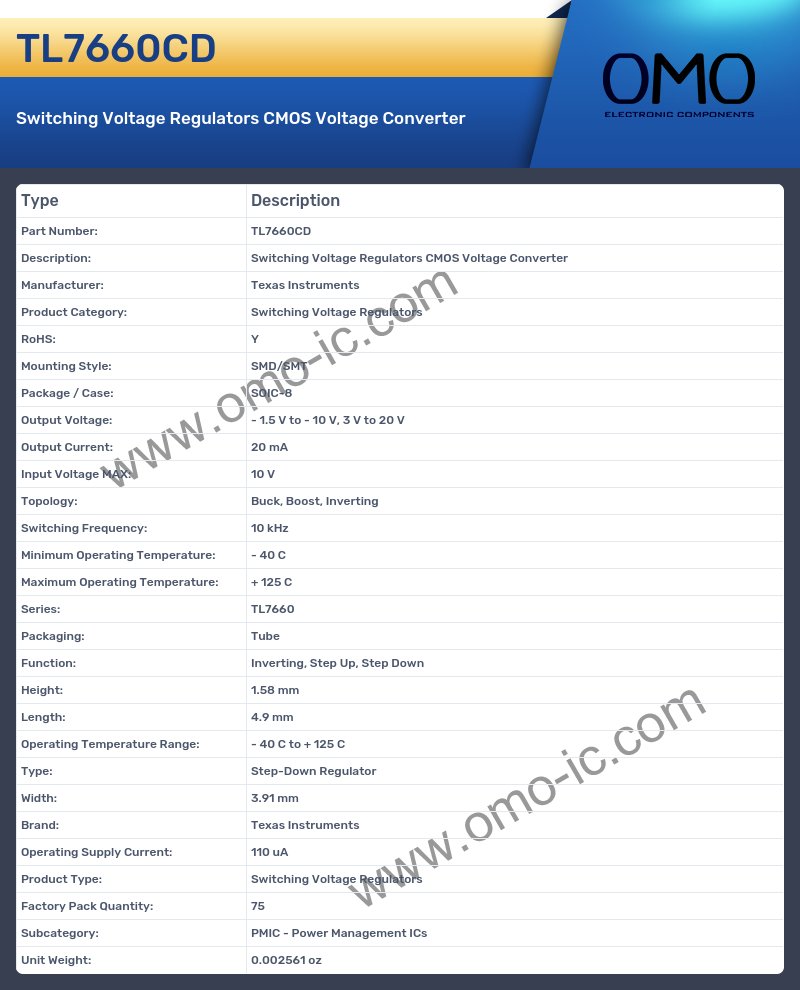

TL7660CD Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Output Voltage: - 1.5 V to - 10 V, 3 V to 20 V
• Output Current: 20 mA
• Input Voltage MAX: 10 V
• Topology: Buck, Boost, Inverting
• Switching Frequency: 10 kHz
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TL7660
• Packaging: Tube
• Function: Inverting, Step Up, Step Down
• Height: 1.58 mm
• Length: 4.9 mm
• Operating Temperature Range: - 40 C to + 125 C
• Type: Step-Down Regulator
• Width: 3.91 mm
• Brand: Texas Instruments
• Operating Supply Current: 110 uA
• Product Type: Switching Voltage Regulators
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002561 oz
