TL3472CD

TL3472CD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Supply Voltage - Max: 36 V This product is equipped with 2 Channel for efficient performance. This product has a 65 dB to 97 dB of 50 dB, ensuring reliable signal acquisition. This product has an 500 nA of 5 uA for precise signal processing. Supply Voltage - Min: 4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Slew Rate Amplifier. The height of the product is 1.58 mm. Rail-to-Rail input type 4.9 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.22 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 2 V minimum dual supply voltage 4 V to 36 V, +/- 2 V to +/- 18 V operating supply voltage range Op Amps - Operational Amplifiers product type 75 of 100 Amplifier ICs as subcategory 1. 0.002561 oz of Unit Weight

TL3472CD Image

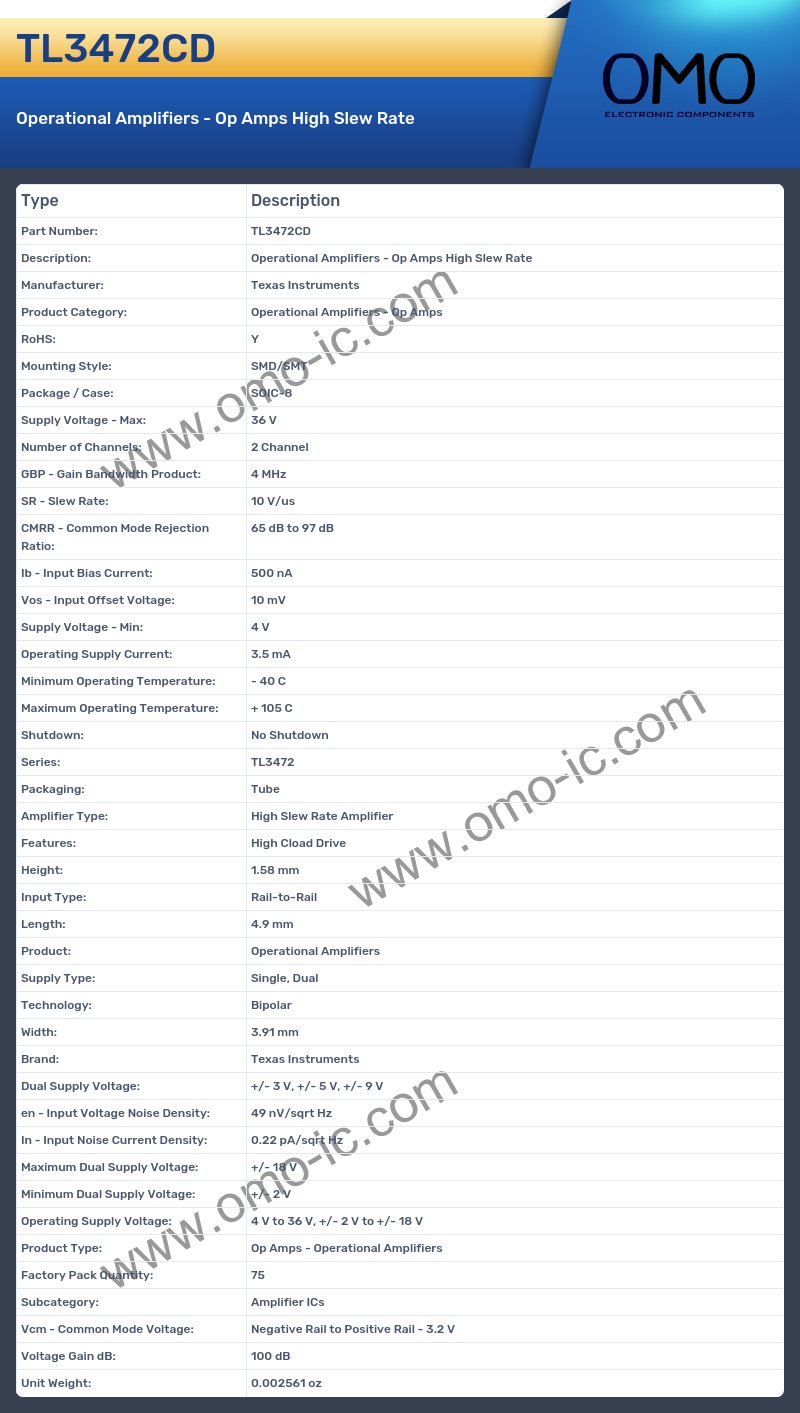

TL3472CD Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage - Max: 36 V
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 4 MHz
• SR - Slew Rate: 10 V/us
• CMRR - Common Mode Rejection Ratio: 65 dB to 97 dB
• Ib - Input Bias Current: 500 nA
• Vos - Input Offset Voltage: 10 mV
• Supply Voltage - Min: 4 V
• Operating Supply Current: 3.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Shutdown: No Shutdown
• Series: TL3472
• Packaging: Tube
• Amplifier Type: High Slew Rate Amplifier
• Features: High Cload Drive
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 4.9 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 49 nV/sqrt Hz
• In - Input Noise Current Density: 0.22 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 2 V
• Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 3.2 V
• Voltage Gain dB: 100 dB
• Unit Weight: 0.002561 oz
