STS9P2UH7

STS9P2UH7 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 9 A continuous drain current Rds On value of 22.5 mOhms Gate-Source Threshold Voltage Range: 400 mV Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel. STMicroelectronics is a trusted brand for quality electronics 84.5 ns fall time MOSFET product type Rise Time is 30.5 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 128 ns. The typical turn-on delay time is 12.5 ns. 1. 0.017870 oz of Unit Weight

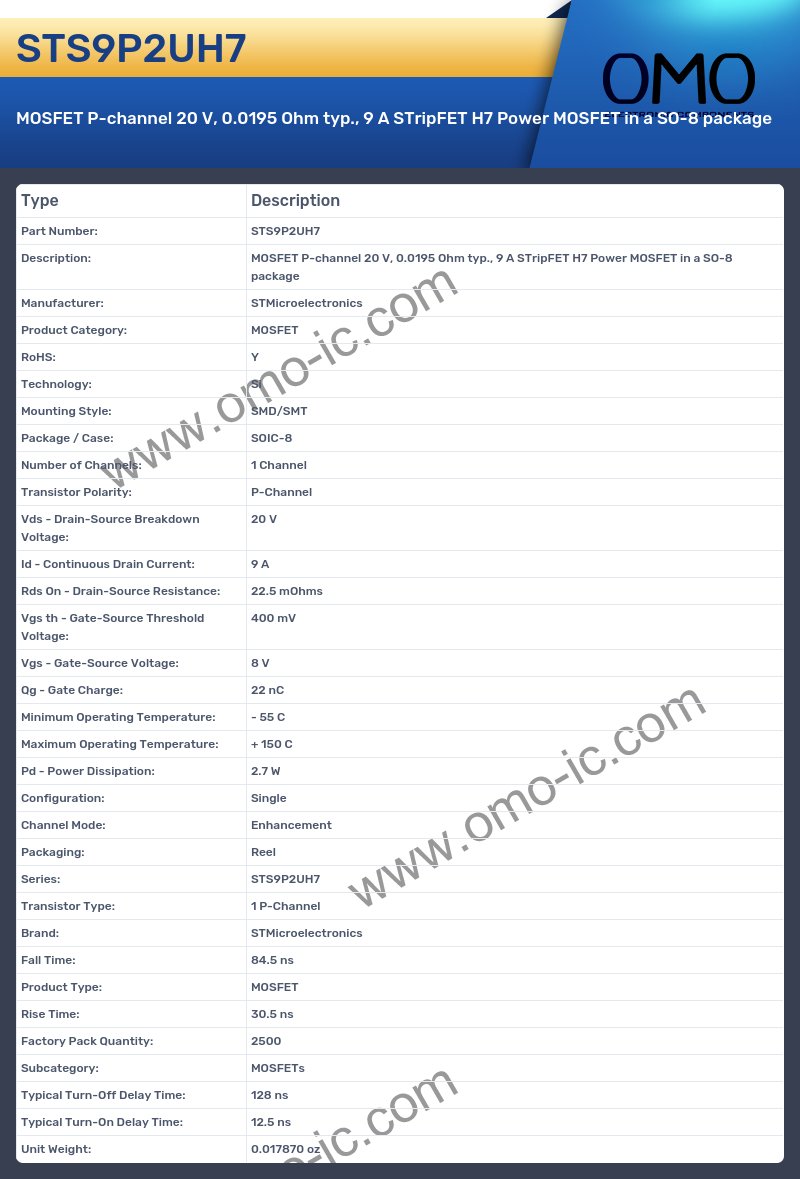

STS9P2UH7 Image

STS9P2UH7 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 9 A
• Rds On - Drain-Source Resistance: 22.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 400 mV
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 22 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.7 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Series: STS9P2UH7
• Transistor Type: 1 P-Channel
• Brand: STMicroelectronics
• Fall Time: 84.5 ns
• Product Type: MOSFET
• Rise Time: 30.5 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 128 ns
• Typical Turn-On Delay Time: 12.5 ns
• Unit Weight: 0.017870 oz
