STN1NK60ZL

STN1NK60ZL Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOT-223-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 300 mA continuous drain current Rds On value of 13 Ohms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 3.3 W This product has a Single configuration. The Channel Mode is set to Enhancement. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 28 ns fall time MOSFET product type Rise Time is 5 ns. 4000 of 100 MOSFETs as subcategory Turn-off delay time is 13 ns. The typical turn-on delay time is 5.5 ns.

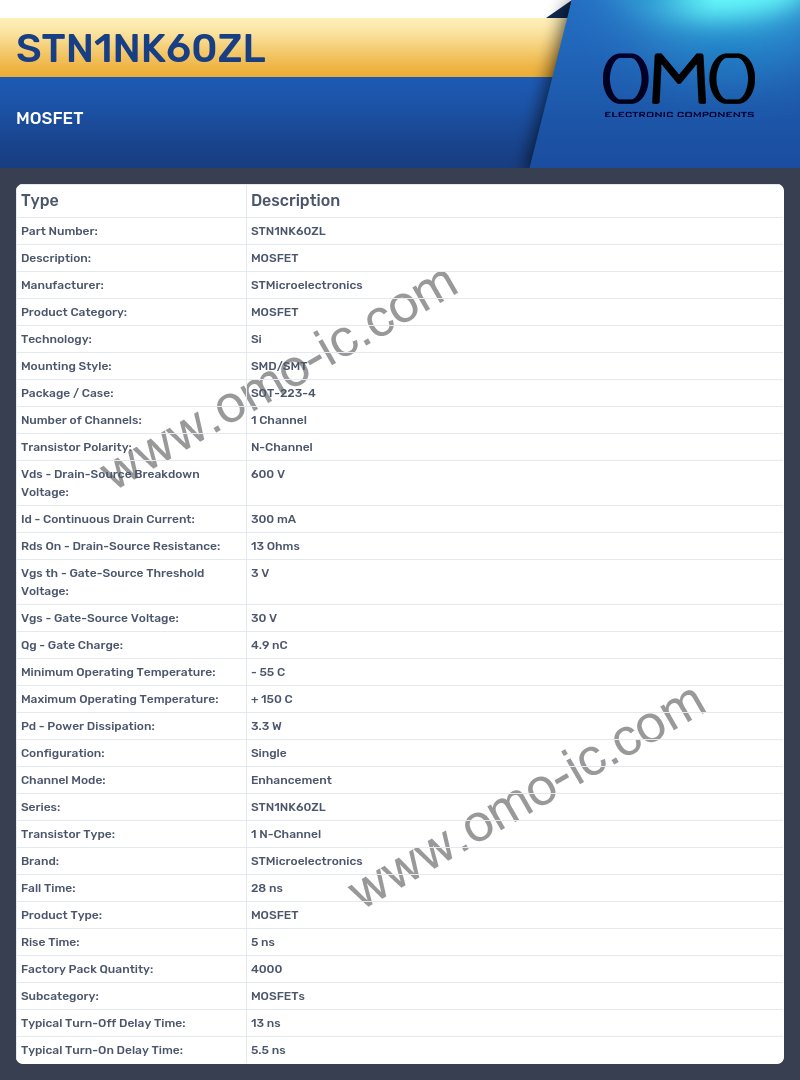

STN1NK60ZL Image

STN1NK60ZL Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-223-4
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 300 mA
• Rds On - Drain-Source Resistance: 13 Ohms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 4.9 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 3.3 W
• Configuration: Single
• Channel Mode: Enhancement
• Series: STN1NK60ZL
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 28 ns
• Product Type: MOSFET
• Rise Time: 5 ns
• Factory Pack Quantity: 4000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13 ns
• Typical Turn-On Delay Time: 5.5 ns
