STL58N3LLH5

STL58N3LLH5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 56 A continuous drain current Rds On value of 9 mOhms Gate-Source Threshold Voltage Range: 2.5 V Gate-Source Voltage: 22 V, - 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 62.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 6.6 mm long Power MOSFET The Transistor Type is 1 N-Channel. This device belongs to the STripFET H5 type. STMicroelectronics is a trusted brand for quality electronics 6 ns fall time MOSFET product type Rise Time is 15.6 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 14.2 ns. The typical turn-on delay time is 10.8 ns. 1. 0.003351 oz of Unit Weight

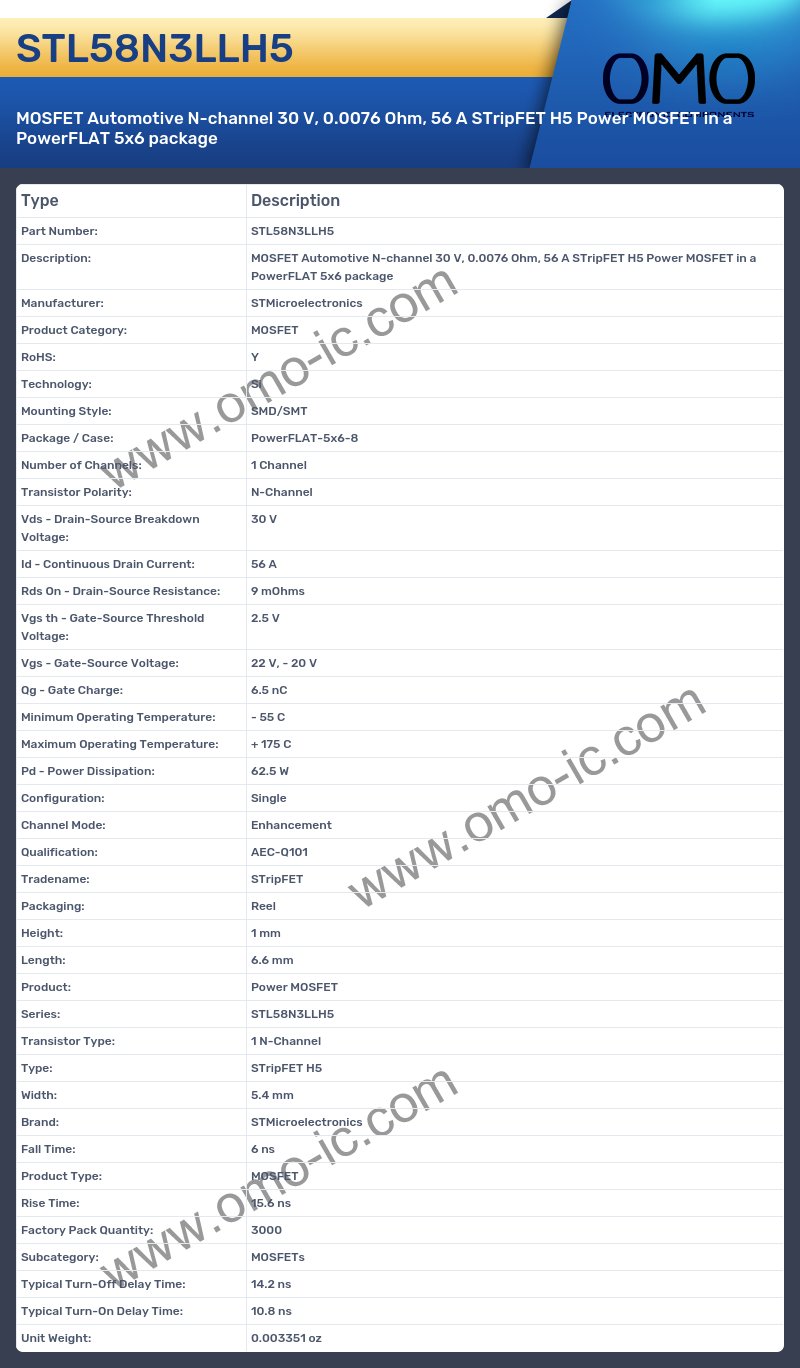

STL58N3LLH5 Image

STL58N3LLH5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 56 A
• Rds On - Drain-Source Resistance: 9 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.5 V
• Vgs - Gate-Source Voltage: 22 V, - 20 V
• Qg - Gate Charge: 6.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 62.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Height: 1 mm
• Length: 6.6 mm
• Product: Power MOSFET
• Series: STL58N3LLH5
• Transistor Type: 1 N-Channel
• Type: STripFET H5
• Width: 5.4 mm
• Brand: STMicroelectronics
• Fall Time: 6 ns
• Product Type: MOSFET
• Rise Time: 15.6 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 14.2 ns
• Typical Turn-On Delay Time: 10.8 ns
• Unit Weight: 0.003351 oz
