STH12N120K5-2

STH12N120K5-2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. H2PAK-2 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 1.2 kV 12 A continuous drain current Rds On value of 620 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 18.5 ns fall time MOSFET product type Rise Time is 11 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 68.5 ns. The typical turn-on delay time is 23 ns. 1. 0.139332 oz of Unit Weight

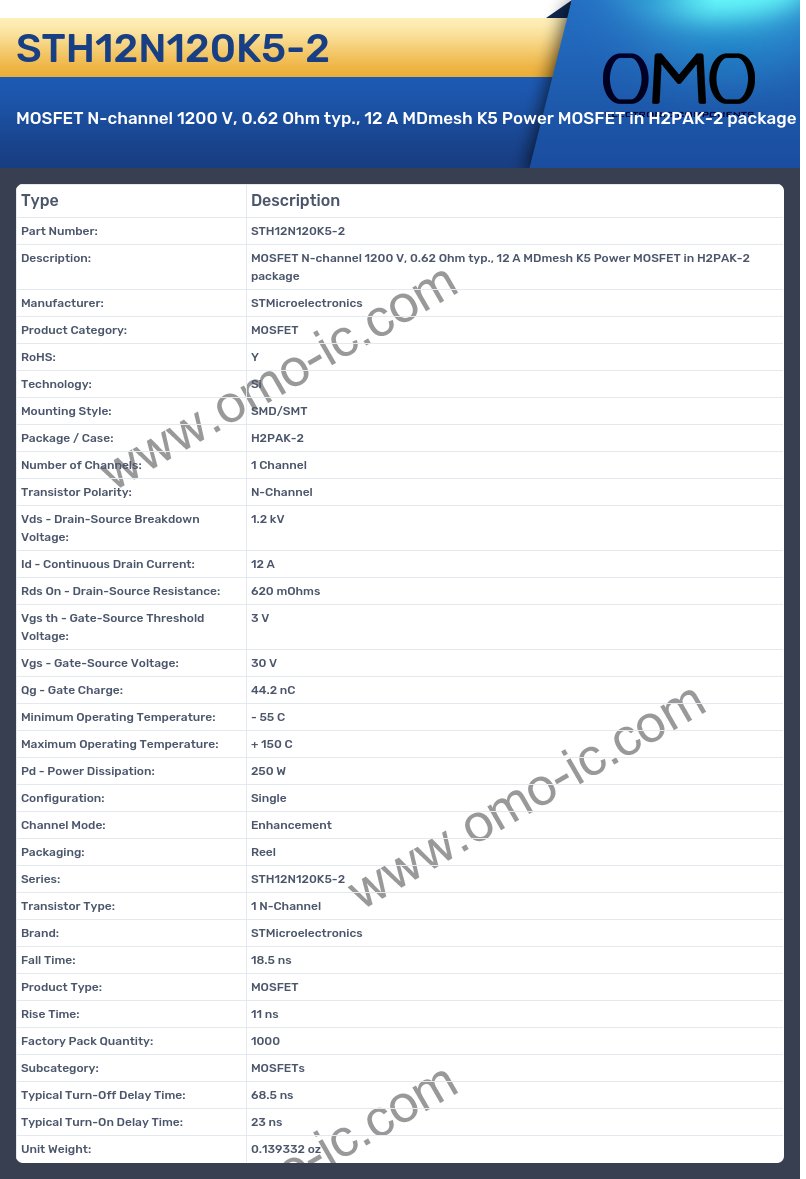

STH12N120K5-2 Image

STH12N120K5-2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: H2PAK-2
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 1.2 kV
• Id - Continuous Drain Current: 12 A
• Rds On - Drain-Source Resistance: 620 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 44.2 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Series: STH12N120K5-2
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 18.5 ns
• Product Type: MOSFET
• Rise Time: 11 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 68.5 ns
• Typical Turn-On Delay Time: 23 ns
• Unit Weight: 0.139332 oz
