STGWA15S120DF3

STGWA15S120DF3 Overview

This product is manufactured by STMicroelectronics. TO247-3 package/case type is utilized by this product. The product can operate at a maximum temperature of Through Hole. This product has a Single configuration. The maximum 1.2 kV. The 1.55 V. Maximum gate emitter voltage is 20 V Continuous Collector Current at 25 C is 30 A 259 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. Tube packaging for easy dispensing Max continuous collector current of 15 A STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: 250 nA IGBT Transistors product type 600 of 100 IGBTs as subcategory 1. 0.191185 oz of Unit Weight

STGWA15S120DF3 Image

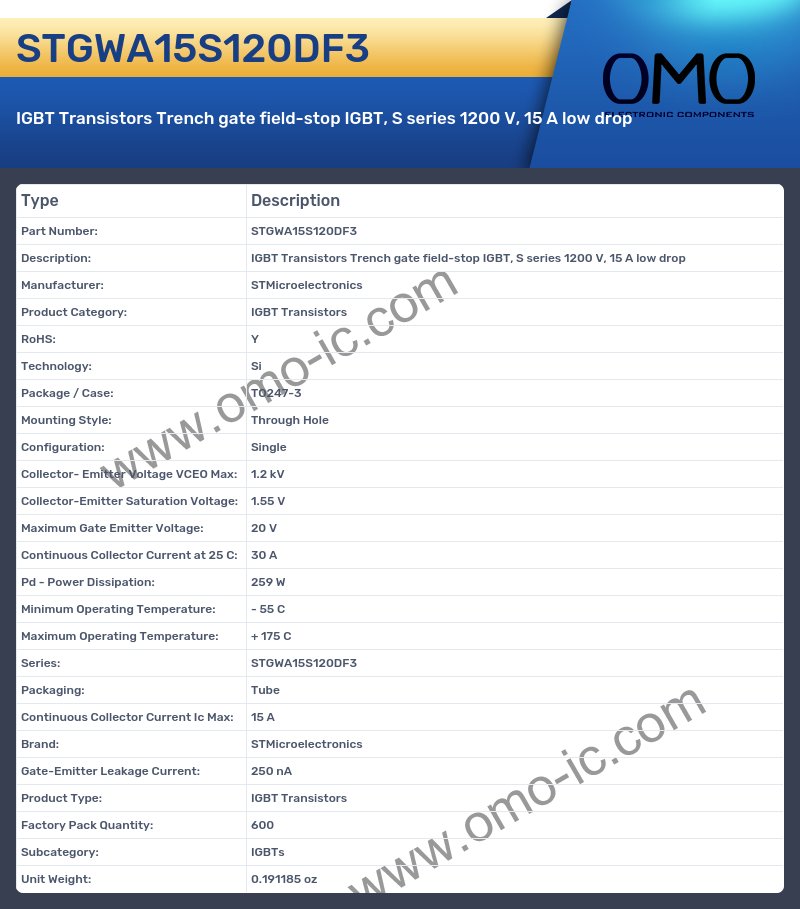

STGWA15S120DF3 Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• RoHS: Y
• Technology: Si
• Package / Case: TO247-3
• Mounting Style: Through Hole
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 1.2 kV
• Collector-Emitter Saturation Voltage: 1.55 V
• Maximum Gate Emitter Voltage: 20 V
• Continuous Collector Current at 25 C: 30 A
• Pd - Power Dissipation: 259 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Series: STGWA15S120DF3
• Packaging: Tube
• Continuous Collector Current Ic Max: 15 A
• Brand: STMicroelectronics
• Gate-Emitter Leakage Current: 250 nA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 600
• Subcategory: IGBTs
• Unit Weight: 0.191185 oz
