STGF5H60DF

STGF5H60DF Overview

This product is manufactured by STMicroelectronics. TO-220FP-3 package/case type is utilized by this product. The product can operate at a maximum temperature of Through Hole. This product has a Single configuration. The maximum 600 V. The 1.5 V. Maximum gate emitter voltage is 20 V Continuous Collector Current at 25 C is 10 A 24 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. Max continuous collector current of 10 A STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: +/- 250 nA IGBT Transistors product type 1000 of 100 IGBTs as subcategory 1. 0.081130 oz of Unit Weight

STGF5H60DF Image

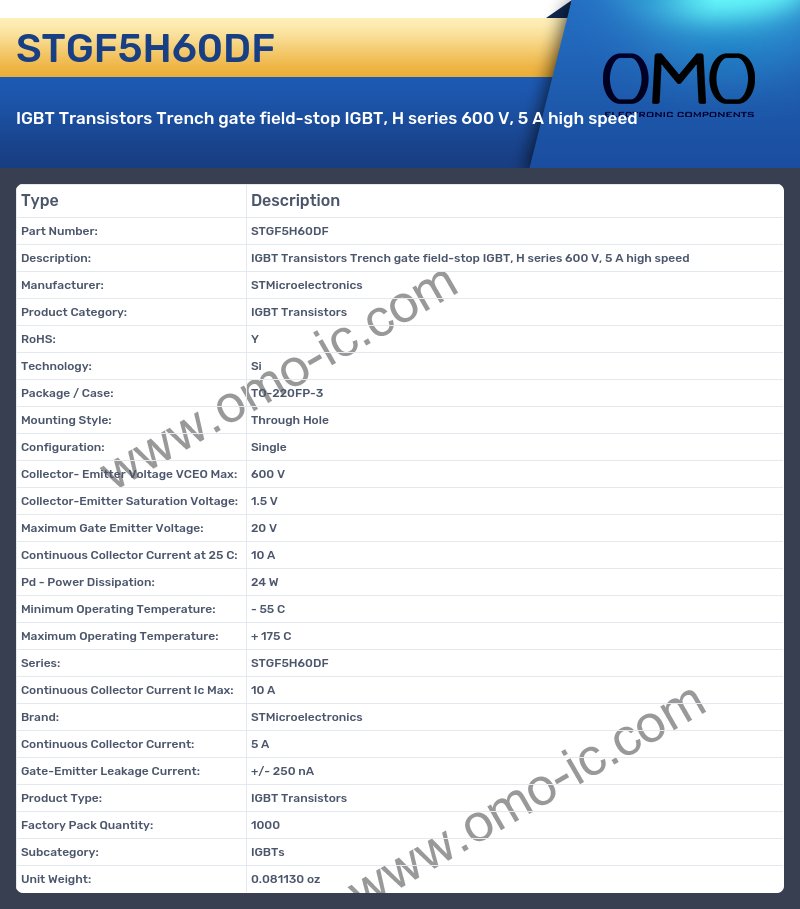

STGF5H60DF Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• RoHS: Y
• Technology: Si
• Package / Case: TO-220FP-3
• Mounting Style: Through Hole
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 600 V
• Collector-Emitter Saturation Voltage: 1.5 V
• Maximum Gate Emitter Voltage: 20 V
• Continuous Collector Current at 25 C: 10 A
• Pd - Power Dissipation: 24 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Series: STGF5H60DF
• Continuous Collector Current Ic Max: 10 A
• Brand: STMicroelectronics
• Continuous Collector Current: 5 A
• Gate-Emitter Leakage Current: +/- 250 nA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 1000
• Subcategory: IGBTs
• Unit Weight: 0.081130 oz
