STD3LN80K5

STD3LN80K5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 800 V 2 A continuous drain current Rds On value of 2.75 Ohms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 45 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 26 ns fall time MOSFET product type Rise Time is 7 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 30 ns. The typical turn-on delay time is 6.2 ns. 1. 0.011993 oz of Unit Weight

STD3LN80K5 Image

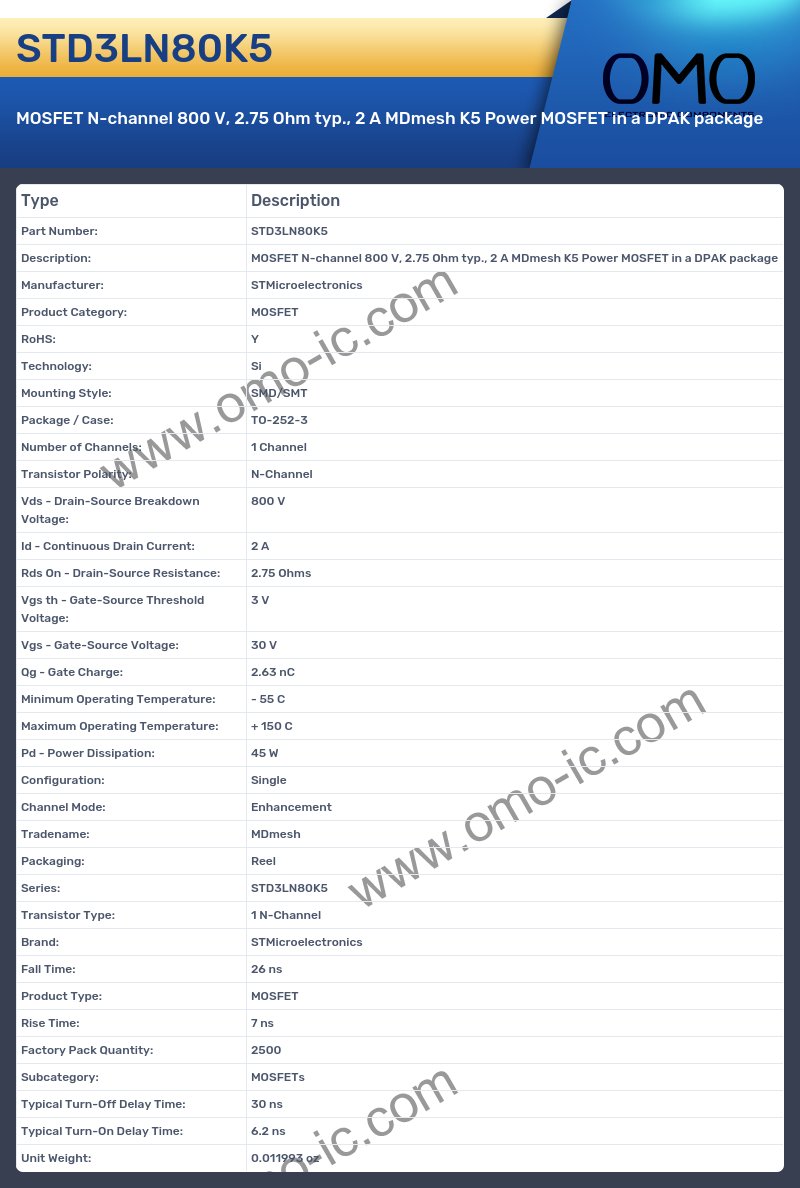

STD3LN80K5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 800 V
• Id - Continuous Drain Current: 2 A
• Rds On - Drain-Source Resistance: 2.75 Ohms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 2.63 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 45 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Reel
• Series: STD3LN80K5
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 26 ns
• Product Type: MOSFET
• Rise Time: 7 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 30 ns
• Typical Turn-On Delay Time: 6.2 ns
• Unit Weight: 0.011993 oz
