STB22N60M6

STB22N60M6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. D2PAK-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 15 A continuous drain current Rds On value of 230 mOhms Gate-Source Threshold Voltage Range: 3.25 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 130 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 8.7 ns fall time MOSFET product type Rise Time is 6.3 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 32 ns. The typical turn-on delay time is 13.6 ns.

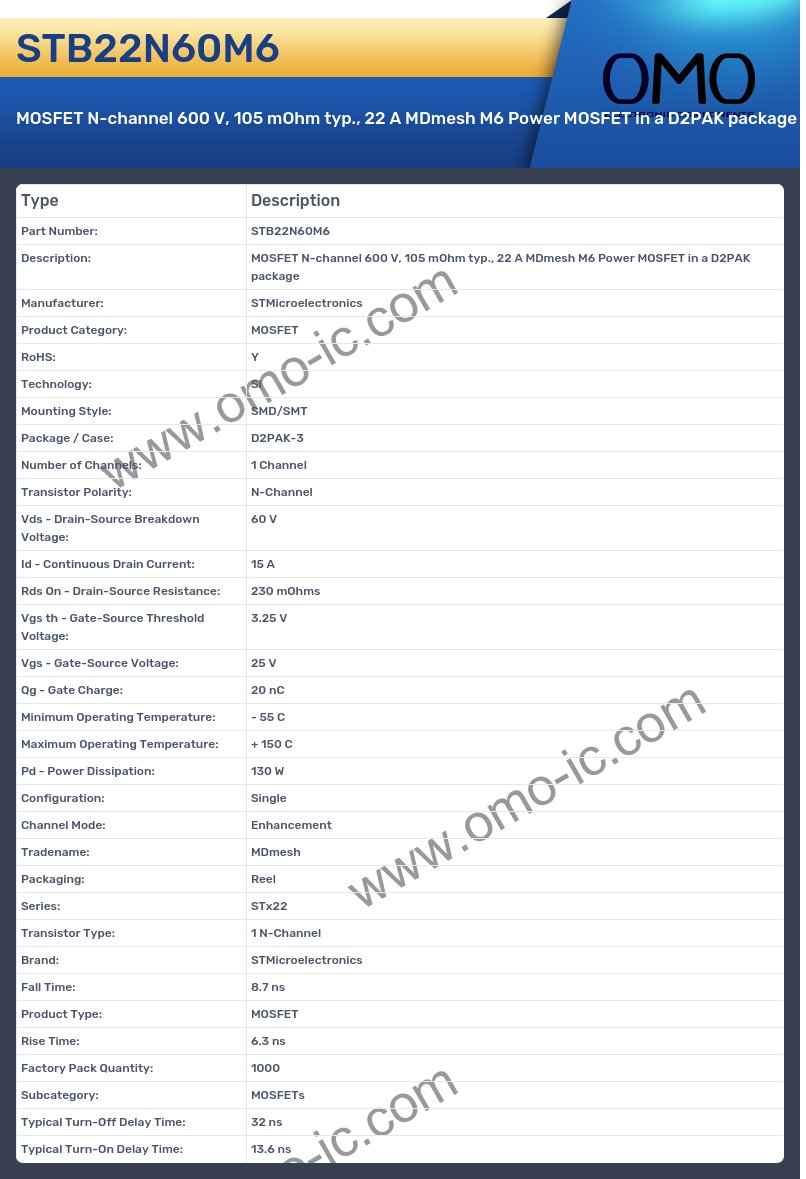

STB22N60M6 Image

STB22N60M6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: D2PAK-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 15 A
• Rds On - Drain-Source Resistance: 230 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3.25 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 20 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 130 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Reel
• Series: STx22
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 8.7 ns
• Product Type: MOSFET
• Rise Time: 6.3 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 32 ns
• Typical Turn-On Delay Time: 13.6 ns
