STB200NF03T4

STB200NF03T4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 120 A continuous drain current Rds On value of 3.2 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification Reel packaging for easy dispensing The height of the product is 4.6 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 200 S 60 ns fall time MOSFET product type Rise Time is 195 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 75 ns. The typical turn-on delay time is 30 ns. 1. 0.139332 oz of Unit Weight

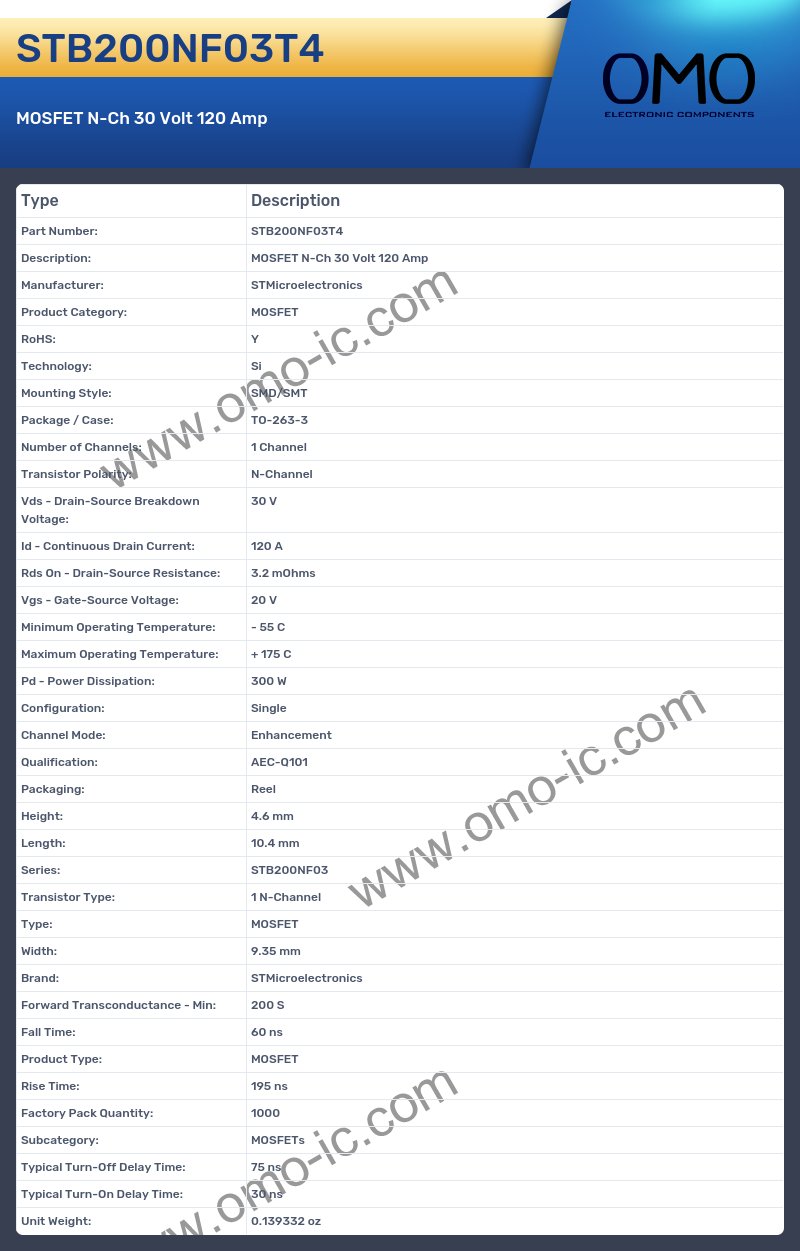

STB200NF03T4 Image

STB200NF03T4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 120 A
• Rds On - Drain-Source Resistance: 3.2 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Packaging: Reel
• Height: 4.6 mm
• Length: 10.4 mm
• Series: STB200NF03
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 9.35 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 200 S
• Fall Time: 60 ns
• Product Type: MOSFET
• Rise Time: 195 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 75 ns
• Typical Turn-On Delay Time: 30 ns
• Unit Weight: 0.139332 oz

STB200NF03T4 FAQ

• A: What is the Manufacturer of the product?

  Q: The Manufacturer of the product is STMicroelectronics.

• A: What is the Mounting Style of the product?

  Q: The Mounting Style of the product is SMD/SMT.

• A: Is the cutoff frequency of the product Package / Case?

  Q: Yes, the product's Package / Case is indeed TO-263-3

• A: At what frequency does the Number of Channels?

  Q: The product Number of Channels is 1 Channel.

• A: Is the cutoff frequency of the product Vds - Drain-Source Breakdown Voltage?

  Q: Yes, the product's Vds - Drain-Source Breakdown Voltage is indeed 30 V

• A: At what frequency does the Id - Continuous Drain Current?

  Q: The product Id - Continuous Drain Current is 120 A.

• A: At what frequency does the Rds On - Drain-Source Resistance?

  Q: The product Rds On - Drain-Source Resistance is 3.2 mOhms.

• A: Is the cutoff frequency of the product Vgs - Gate-Source Voltage?

  Q: Yes, the product's Vgs - Gate-Source Voltage is indeed 20 V

• A: What is the Minimum Operating Temperature of the product?

  Q: The Minimum Operating Temperature of the product is - 55 C.

• A: Is the cutoff frequency of the product Maximum Operating Temperature?

  Q: Yes, the product's Maximum Operating Temperature is indeed + 175 C

• A: At what frequency does the Pd - Power Dissipation?

  Q: The product Pd - Power Dissipation is 300 W.

• A: What is the Configuration of the product?

  Q: The Configuration of the product is Single.

• A: What is the Channel Mode of the product?

  Q: The Channel Mode of the product is Enhancement.

• A: Is the cutoff frequency of the product Qualification?

  Q: Yes, the product's Qualification is indeed AEC-Q101

• A: Is the cutoff frequency of the product Packaging?

  Q: Yes, the product's Packaging is indeed Reel

• A: Is the cutoff frequency of the product Height?

  Q: Yes, the product's Height is indeed 4.6 mm

• A: What is the Length of the product?

  Q: The Length of the product is 10.4 mm.

• A: Is the cutoff frequency of the product Transistor Type?

  Q: Yes, the product's Transistor Type is indeed 1 N-Channel

• A: Is the cutoff frequency of the product Type?

  Q: Yes, the product's Type is indeed MOSFET

• A: What is the Brand of the product?

  Q: The Brand of the product is STMicroelectronics.

• A: At what frequency does the Forward Transconductance - Min?

  Q: The product Forward Transconductance - Min is 200 S.

• A: Is the cutoff frequency of the product Fall Time?

  Q: Yes, the product's Fall Time is indeed 60 ns

• A: Is the cutoff frequency of the product Product Type?

  Q: Yes, the product's Product Type is indeed MOSFET

• A: Is the cutoff frequency of the product Rise Time?

  Q: Yes, the product's Rise Time is indeed 195 ns

• A: Is the cutoff frequency of the product Factory Pack Quantity?

  Q: Yes, the product's Factory Pack Quantity is indeed 1000

• A: Is the cutoff frequency of the product Subcategory?

  Q: Yes, the product's Subcategory is indeed MOSFETs

• A: Is the cutoff frequency of the product Typical Turn-Off Delay Time?

  Q: Yes, the product's Typical Turn-Off Delay Time is indeed 75 ns

• A: What is the Typical Turn-On Delay Time of the product?

  Q: The Typical Turn-On Delay Time of the product is 30 ns.

• A: Is the cutoff frequency of the product Unit Weight?

  Q: Yes, the product's Unit Weight is indeed 0.139332 oz
